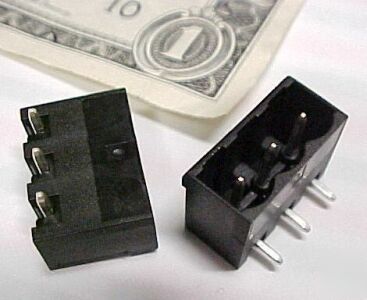

Lot of 25 ria 31230103 terminal headers, 3-p female pcb
Mates with: Ria Type 213, Type ASP046, Type 214, Type 249 & Type 250
These were purchased at a factory closing earlier this year, and they are brand new in the original factory boxes. We rebagged them into 4mil Ziplok bags for resale.
Height (excluding pins): .333"
Pin spacing: .200" OC (on centers)
Header, centerline 5.08 mm / 0.200 inches, horizontal mounting, square contact pins 1 mm / 0.039 inches, closed ends, codable
Volts (max): 300 Amps (max) 15 Insulating material class: CTI 600
Clearance and creepage distances: min. 4.08 mm
Insulation co-ordination according to EN 60664-1
Overvoltage category III III II:
Protection category according to IEC 529: IP00
Recommended pc board hole dia. 1.5 mm
Solder pin dimension: 1.0 x 1.0 mm
(26 to 40) lots: Three pounds
(41 to 55) lots: Four pounds
(56 to 70) lots: Five pounds
