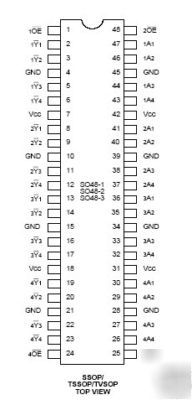

Idt 74FCT16240ATPA fast cmos 16-bit buffer/line driver
(24) IDT 74FCT16240ATPA FAST CMOS 16-BIT BUFFER/LINE DRIVER in anti-stat tube.
The FCT16240T/AT/CT/ET and FCT162240T/AT/CT/ET
16-bit buffer/line drivers are built using advanced dual metal
CMOS technology. These high-speed, low-power devices
offer bus/backplane interface capability with improved packing
density. The flow-through organization of signal pins simplifies
layout. The three-state controls are designed to operate these
devices in a Quad-Nibble, Dual-Byte or single 16-bit word
mode. All inputs are designed with hysteresis for improved
The FCT16240T/AT/CT/ET are ideally suited for driving
high capacitance loads and low-impedance backplanes. The
output buffers are designed with power off disable capability
to allow "live insertion" of boards when used as backplane
The FCT162240T/AT/CT/ET have balanced output drive
with current limiting resistors. This offers low ground bounce,
minimal undershoot, and controlled output fall times reducing
the need for external series terminating resistors. The
FCT162240T/AT/CT/ET are plug-in replacements for
FCT16240T/AT/CT/ET and 54/74ABT16240 for on-board interface
High-speed, low-power CMOS replacement for
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage
ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
Packages include 25 mil pitch SSOP, 19.6 mil pitch
TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack
Extended commercial range of -40
Features for FCT16240T/AT/CT/ET:
OLP (Output Ground Bounce) < 1.0V at
Features for FCT162240T/AT/CT/ET:
