New fluoropure 3 way sentryâ„¢ qc ii dispense head (dht)
Our Asset #:KSC129 - 1225 A16 Qty available:9
New FluoroPure 3 way Sentry QC II Dispense Head (DHT)
Est. Rigging fees $35 per 1,000 lbs: $35.00 Est. Packaging: $ 15.00
Condition: New Guaranty: See our 10 day money back guaranty
Full Description or BackgroundFluoroPure Container Products dispense head used for chemical barrels. This unit came from a semiconductor wafer plant and was in their new spare parts inventory. These are all new units still in the original factory packaging! Tag Photos or information
pn: 1031-042 Serial #: 100017728 Year:
HP/Amp/KW/KVA:NA Voltage: NA Phase: NA Other Info:

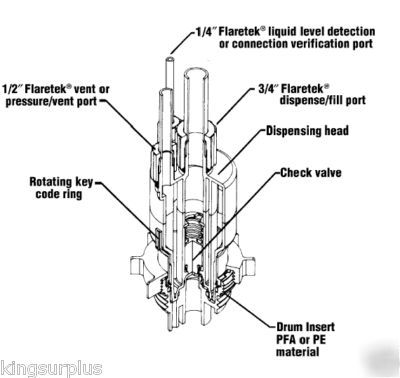

Sentry QCII Quick Connect System
The safe and convenient method of interfacing reusable FluoroPure chemical containers with bulk delivery systems.
The patented design is key coded to assure against unsafe chemical mixing while ensuring dedicated clean service. One connection provides dispensing, venting and level detection.
A radial seal design provides superior leak-free performance even after multiple make-and-break connections, while minimizing o-ring wear.
The dispense head has an independently rotated key code ring that allows quick key tab alignment without having to twist the umbilical lines or rotate the container.
Integral Flaretek tube fittings on the dispense head provide a proven connection that improves flexibility, allowing for easy field maintenance and replacement.
An internal check valve seals off backflow when disconnecting the Sentry QCII Quick Connect System.
Anti-rotation clips prevent the drum insert down tubes from twisting and becoming misaligned.
Additional chemical key code tabs allow more code options for use in more chemical applications.
A splash guard provides easy access to the dispense head during container change-out.
Wetted parts include PFA, FEP, PTFE and Kalrez 4079 materials.
Nonwetted parts include PVDF and polyethylene materials.
Drum insert is available in PFA and polyethylene with FEP encapsulated o-rings.
Dispense head is available in PFA.
Maximum pressure:
30 PSIG (207 kPa)
Maximum fluid temperature:
a. Est. Wt. each: 65LBS b. Est. pkging wt: 15 c. Est. total wt: 80
