Spirax sarco f&t trap ft-150 1" 150 psig

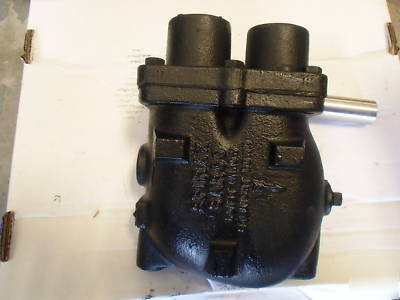

SPIRAX/SARCO CAST IRON FLOAT & THERMOSTATIC STEAM TRAP FT-150 WITH 1" FNPT INLET/OUTLET.
The Spirax Sarco FT contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature while non-condensible gases are released by a separate internal balanced pressure thermostatic air vent.
All process equipment, particularly when controlled by modulating temperature control valves, unit heaters, air heating coils, heat exchangers and steam main drip stations
MAX. OPERATING PRESSURE (PMO): 150 PSIG
MAX. OPERATING TEMPERATURE: 45 F OF SUPERHEAT AT ALL OPERATING PRESSURES
MAX. ALLOWABLE TEMPERATURE (TMA): 450 F/0-200 PSIG
FOR COMPLETE DETAILS & SPECS (PDF): http:// /us/pdfs/TI/ti-2-314-us.pdf
