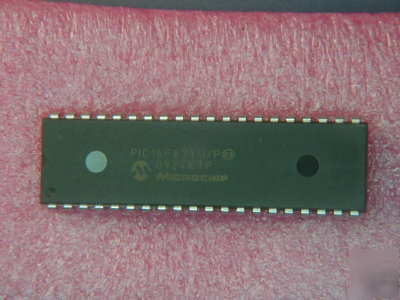

Pic 16F871 PIC16F871 i/p 8-bit cmos flash 40 pin dil
Microcontroller Core Features:
Only 35 single word instructions to learn
All single cycle instructions except for program branches which are two-cycle
Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle
2K x 14 words of FLASH Program Memory 128 x 8 bytes of Data Memory (RAM) 64 x 8 bytes of EEPROM Data Memory
Pinout compatible to the PIC16CXXX 28 and 40-pin devices
Interrupt capability (up to 11 sources)
Eight level deep hardware stack
Direct, Indirect and Relative Addressing modes
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
Low power, high speed CMOS FLASH/EEPROM technology
In-Circuit Serial Programming (ICSP ) via two pins
Single 5V In-Circuit Serial Programming capability
In-Circuit Debugging via two pins
Processor read/write access to program memory
High Sink/Source Current: 25 mA
- < 1.6 mA typical @ 5V, 4 MHz
- < 1 A typical standby current
Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock
Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
One Capture, Compare, PWM module
10-bit multi-channel Analog-to-Digital converter
Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection
Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls (40/44-pin only)
Brown-out detection circuitry for Brown-out Reset (BOR)
