Rigol DS1052E 2 channel 50 mhz scopemeter 1 gsa/s 1MPTS
Rigol DS1052E 2 Channel 50 MHz Scopemeter 1 GSa/s 1Mptswith free T3100 X100 Probe
The Rigol DS1052E is a true mixed signal oscilloscope with 1GSa/s max sample rate, and 1 Mpts of memory depth. The DS1052E has 50MHz of bandwidth.
The DS1052E has adjustable trigger sensitivity which avoids false triggers with the ability to filter noise. Adjustable waveform intensity provides a personalized waveform display. It has an easy to use file system which allows for both USB flash drive and local file storage, and an easy to access built in help system.

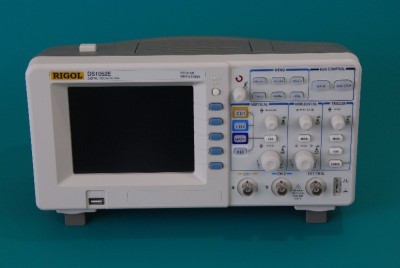

Note: The picture showing active waveforms is from the DS1102E not the DS1052E, but the overall appearance is the same.
* 1 GSa/s maximum Real-time Sample Rate and 1 Mpts of memory depth.
* Extensive set of trigger modes including: Edge, Video, Pulse width, Slope, Alternate
* 64 k TFT Color LCD, bright and vivid waveform display
* Direct print to PictBridge compatible printers via USB Device interface.
* Compact design to save your desktop space.
* Convenient Carrying Handle.
* Channels: Dual channel + external trigger
* Single channel mode: 1 GSa/s
* Dual channel mode: 500 MSa/s
* Timebase Range: 5 ns/div ~50s/div
* Vertical resolution: 8 bits
* Vertical sensitivity: 2 mV/div ~10V/div
* Maximum input voltage: All inputs 1 M 15pF 300V RMS CATI
* Input coupling: DC, AC, GND
* Roll range: 500ms/div ~50s/div
* Connectivity: USB device, USB host, RS-232, P/F out
* Display: 5.6" TFT (64k, color LCD), 320x234 resolution
* Power supply: AC:100 ~ 240 VACRMS, 45 ~ 440 Hz, CAT II, 50 VA Max
We include a free Hantek T3100 X100 Passive probe with every unit.
In stock in Colorado. 3 year factory warranty!
