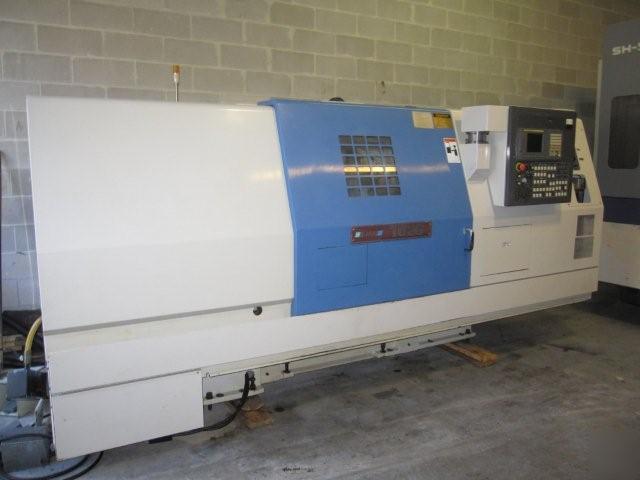

Ikegai TU26-l turning center
MAX SWING OVER BEDWAYS ....................... 19.7"
MAX SWING OVER SADDLE ........................ 13.8"
MAX MACHINING DIAMETER ....................... 17.7"
MAX MACHINING LENGTH ......................... 25.5"
X-AXIS TRAVEL ................................ 9.84"
Z-AXIS TRAVEL ................................ 27.5"
SPINDLE NOSE ................................. A2-8
SPINDLE SPEEDS ( 2 SPEEDS ).................. 8 TO 4,000 RPM
SPINDLE THROUGH HOLE ......................... 3.4"
TURRET CONFIGURATION ......................... 12 STATIONS
TAILSTOCK CONFIGURATION (QUILL DIA) .......... 3.93"
QUILL STROKE ................................. 3.93"
TAILSTOCK TAPER .............................. #5 MT
MAIN MOTOR ................................... 20 HP
MACHINE DIMENSIONS ........................... 119" L X 61"
MACHINE WEIGHT ............................... 12,000 LBS
* 10" KITAGAWA HYDRAULIC CHUCK
*** MACHINE CUTTING TIME HOURS 3,950
See additional photos on our web site: http://uen.hsix.com/q/webinv/015870=x,1163
