Double door access control kit with dual 1200LB lock

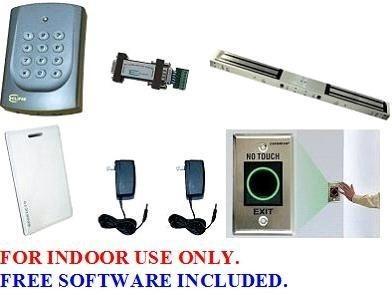

Double door Access control kit dual 1200lb lock and software
FOR INDOOR AND DOUBLE DOOR USE ONLY
This proximity card reader is a perfect access control device for inside doors in any sensitive area. Maximum distance is approx. 15cm (5.9 inches). If you need to control access at a security door, this indoor/outdoor security keypad and proximity card reader is a perfect choice.
Keypad will lock for 30 seconds after continuous error operation
Built-in watchdog to prevent system halting
Support delay relay auto-relock function
Built-in reader and additional reader support port for exit or anti-pass-back function
Door relay: 12VDC @ 2A NO/NC/COM 0.1-60 sec. latch type
Alarm relay: transistor output/serial output (selective)
Serial port: limit switch (form C)
Dimensions: 112mm x 76mm x 25mm (4.41" x 2.99" x .98")
* This electrically activated magnetic lock operates on 12 or 24 volts DC.
Anodized aluminum housing
Dual voltage (selectable)
1200lb each (545kg each) pressure
Adjustable mounting bracket
Complete hardware included
Power Supply is not included
Dimensions: 21" X 3" X 1 1/2"
ACC900 Reader Install Manual.pdf (3095973 bytes)
acc-900 Reader Program Quick Sheet.pdf (208697 bytes)
