54" tbl 3HP spdl gmc gmm-1054V-pkg package deal vertica
54" Tbl 3HP Spdl GMC GMM-1054V-PKG Package Deal VERTICA
54" Table 3HP Spindle GMC GMM-1054V-PKG Package Deal VERTICAL MILL, Made In Taiwan, with OEM DRO &

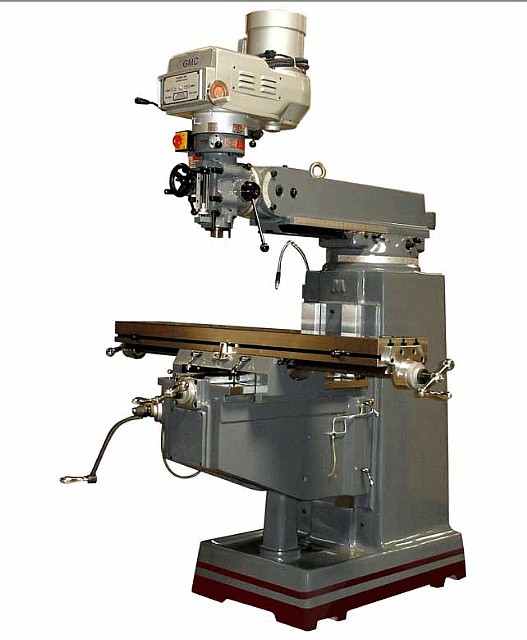

NEW GMC 10" x 54" Table, Variable Speed Head
Knee Type Vertical Milling Machine, Made In Taiwan
Model # GMM-1054V-PKG Package Deal
** PACKAGE INCLUDES FREE SINO 2 AXIS DRO and X-AXIS POWER FEED, INSTALLED **
Made in Taiwan - a high quality Mill
Turcite B Coating on X & Y ways
Variable spindle speeds from 70-4,300 rpm
Heavy duty 3 HP AC spindle motor, 3 phase (ideal for tapping jobs,
we strongly recommend the 3 phase mill with a phase converter for
Hardened & ground box ways on Knee and Column
Hardened & ground table and ground table T-slots
Precision hardened & ground ACME Leadscrews
Chromed ground quill ( spindle )
Manual or automatic quill feeds 0.0015, 0.003, 0.006 IPR
front and rear rubber chip guards
Specify either 220V or 440V, 3 phase
One year industrial warranty for parts
Variable spindle speeds 70-4,300 rpm
Quill ( Spindle ) diameter 3 3/8
SINO DRO and table power feed, installed included
Table T-slot size 5/8 x 3 slots
Head Swivel, R/H , L/H 90 degree
Free Coolant system, installed
DRO, Upgrade to NEWALL C80 # NW-949-2, 2 axis, free installation
DRO, Upgrade to NEWALL C80,# NW-949-3, 3axis, 3rd on quill or column
DRO, Upgrade to SINO, # SINO-3, 3 axis
Power air draw bar, High Quality( USA)# HQR8
Base coolant/chip drop pan# COOL-PAN
Power feed # FP-180Y, Taiwan ALIGN, y axis
Power feed # FP-180Z, Taiwan ALIGN, Z axis
52 pcs clamping kit # # 900-0001, -13NC stud, 5/8 T-slot
11 pcs R8 collets set # 900-0007, 1/8 - 7/8
Phase converter # PAM-300HD, USA, for single phase operation
Mill package # 3, includes the following:
6 vise #900-0021, collet set #900-0007, Clamping Kit #900-0001,
20pc Titanium end mill set #8000-0020, 29pc Titanium drill bit set #5000-0001T
