New labstrobe led stroboscope strobe light tools timing

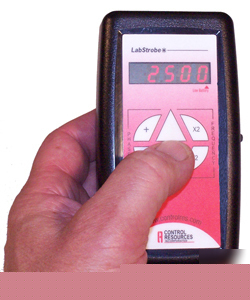

LabStrobe STB100-F is a hand held LED stroboscope used to measure the speed of rotation or frequency of vibration of a fan, motor, speaker, other mechanical part or system. The latest in LUXEON LED technology provides this pocket sized stroboscope with unparalleled brightness and battery life at this price point.
Stroboscopes have the advantage of not loading or disturbing the equipment under test. Mechanical equipment may be observed under actual operating conditions. Parasitic oscillations, flaws, and unwanted distortion at high speeds are readily detected.
The LabStrobe LED Stroboscope is ideal for field work, test benches, laboratories, universities and repair facilities.
LabStrobe LED Stroboscope Specifications
* Size: 4.9" (124mm) x 2.8" (71mm) x 1.3" (33mm)
* Power: 3V (2 AA Batteries included)
* Brightness: 370 LUX @ 50 cm (19.7"), 6,000 FPM
* Six button membrane for easy operation
* Flash rate adjustment (4 buttons)
* Coarse: Multiply by 2, divide by 2
* Fine: Up & Down (1-15 FPM increments)
* Flash phase adjustment (2 buttons)
* Up & Down, 0-360 adjustment
* Flash rate range in FPM: 60 - 99,990
* Flash rate range in Hz: 1 - 1,666
* 60 - 17,300 FPM: +/- 1 LSD
* 17,300 - 99,990 FPM: +/- .009%
* Typical Alkaline battery life: 11 hours
* Operating temperature: 14 to 122 F (-10 to 50 C)
* Tripod mountable (1/4 - 20 UNC thread)
* Weight: 6.1 oz (173 grams), batteries included
LabStrobe LED Stroboscope Features
* Lightweight, pocketsize design
* Battery powered for portability
* Flash rate recall: On power up, the last flash rate that was displayed
for 3 seconds or more is shown on the display
* Two high brightness PHILIPS LUXEON LEDs
* No costly lamp to replace
* Ultra high efficiency for longer run time
* Immune to mechanical shock and vibration
