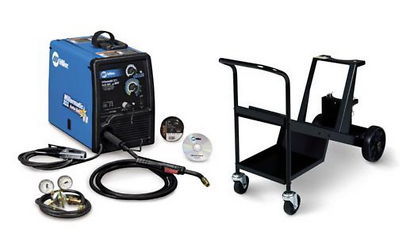

Millermatic 211 mig welder & dlx cart 907422 & 770187
The Millermatic 211 is Miller's answer to a small , portable heavy duty mig welder that can be used on both 120 and 230 volts . The Millermatic 211 uses the MVP plug system as the DVI2 and Spectrum Xtreme 375. The Millermatic 211 welds up to 3/8" in a single pass .Features include- Auto-Set , Smooth Start feature , and Tip Saver .
Welds 18 gauge to 1/4" aluminum
Welds thickest material in its class- up to 3/8" in a slngle pass
Auto-Set - the exclusive Auto-Set feature makes set up quick and easy .
Infinite voltage adjustment - provides broader operating range with finer control than a tap machine
Mulit-Voltage Plug- MVP -Miller's exclusive MVP allows connection to a 115 V or 230 V receptacle without tools
Smooth-Start -patent pending technology provides smooth splatter free starts
Tip Saver - shuts down output if tip is shorted to work. Extends contact tip and protects internal components from damage.
* 230 V operation: 150A at 23.5 VDC, 30% Duty Cycle
* 115 V operation: 90A at 20 VDC,
* 6 ft (3m) power cord and MVP plugs for 120 & 230 volts
* Smith regulator with hose
* Dual groove quick change drive rolls for .024 .030 & .035
* Extra contact tips , Hobart Spool od solid wire , information / settings chart
* Material thickness gauge
* New! Set-up and operation CD
* Miller 770187 Deluxe Running Gear
Light Industrial Applications
* Vocational/Technical Schools
Amps Input at Rated Output,
