> Master bilt 48" mpm-48N merchandiser refrigerator

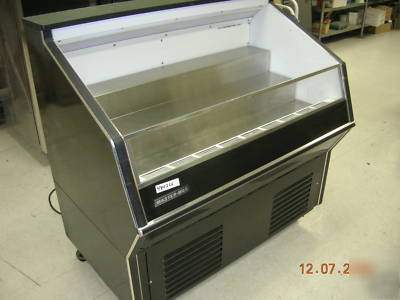

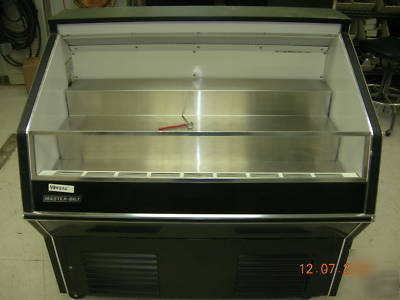

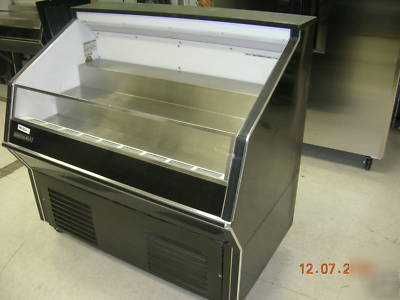

Master bilt 48" mpm-48N merchandiser refrigerator
When calling please refer to Item #CL-4791CLNDMB and ask for "Bennett"
We just got in two of these units that are in great shape from a sandwich shop that went out of business.
We sell this unit on our website new for over $4000 check us out at www.brrr.cc
Medium Temp Display Merchandiser
Dimensions: 48" x 30 1/2" x 43 1/4"
* Full length 8-3/4" wide laminated white formica
908 Highway 15 North New Albany, MS 38652
PHONE: (***)-647-1284 or (***)-534-9061 FAX: (***)-232-3966 or (***)-534-6049
MEDIUM TEMP OPEN DISPLAY MERCHANDISERS
Provide_______________( ) Medium
Temp Open Display Merchandiser(s), Master-
Bilt model no. MPM-__________.
Merchandiser to have removable two

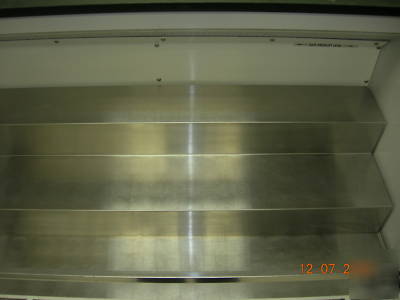

tier stainless steel display deck, full length
Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
MPM-36 and MPM-48 via plug-in, 9 foot
long, flexible three wire 14/3 cord with
molded plug. MPM-72 model hardwired
with separate 115V junction boxes for
cabinet and condensate evaporator.
PLAN VIEW SIDE VIEW ELEVATION VIEW
3/4" wide laminated white formica counter
top, front bumper guard, automatic
defrost, on/off power switch (MPM-36 and
MPM-48 only), black vinyl trim and have
foamed-in-place zero ODP urethane
insulation. The temperature range of the
merchandiser will be 34 to 41 F (1 to 5 C).
Merchandiser to have standard limited four
year extended compressor warranty and one
year limited parts and labor warranty. Merchandiser
to be UL and C-UL listed and UL
1/2 431/4 (***) 787 1099 115 10.3 1/3 3.7 41.0 310/141
1/2 431/4 1(***) 787 1099 115 15.5 1/2 5.1 53.0 410/220
1/2 431/4 1(***) 787 1099 115/115* 15.8/10.4* 3/4 7.9 86.0 590/268
*Electric condensate evaporator requires separate power supply.
NOTE: All specifications subject to change without notice.
RECOMMENDED OPERATING CONDITIONS
Merchandisers designed to hold product
in the 34 to 41 F (1 to 5 C) range
Designed to operate in air-conditioned
stores where the maximum temperature
is 75 F and the maximum relative
Should not be installed in direct sunlight
Should not be installed near HVAC vents,
fans or doorways that will disrupt airflow
and compromise the function of the air
Bottom shelf should not be loaded such
that the front air intake is obstructed
Factory installed controls should not
be altered, removed or replaced without
Product must not be displayed in the cold
