K&e precision level 71-3010 brunson keuffel & esser

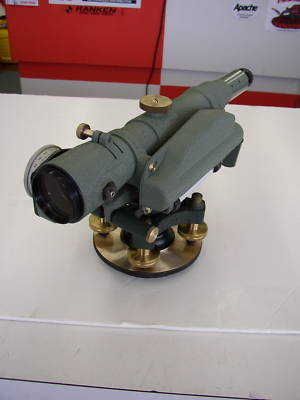

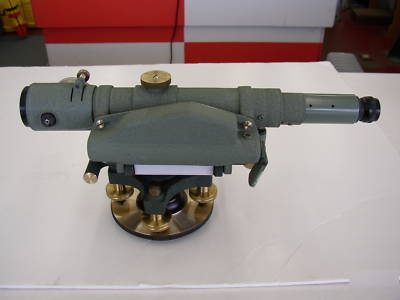

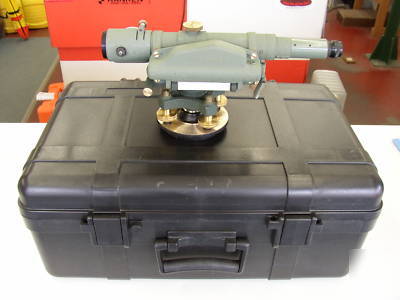

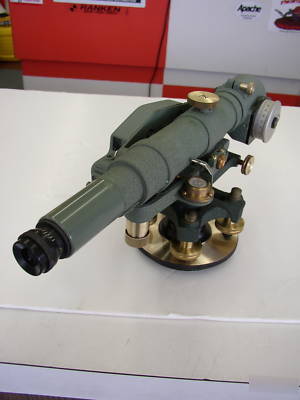

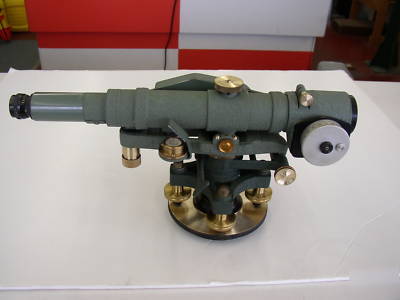

K&E Paragon Tilting Level Model 71-3010
With 71-1111 Optical Micrometer
Just Over-Hauled, Cleaned, Lubed and Adjusted
The K&E Tilting Level was specifically designed to establish a level plane in space, level to 1 second arc. Instrument focus 4 to infinity. Two speed tilting screw. Optical Micrometer reads directly to .001 of an inch, with .0001" vernier.
You can use your K&E Level with Keuffel Esser Jig Transits, Davidson Optronics Auto-Collimators, Taylor Hobson Scopes, Wild Heerbrugg - Leica T2 Theodolites, N3 Precision Levels, Kern DKM2-AE & AET Theodolites, as well as Cubic Precision Optical Tooling.
