11" x 18" hardingetool room lathe, model hlv-h

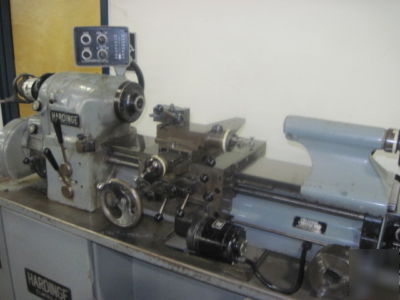

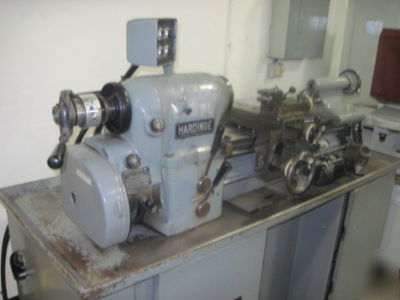

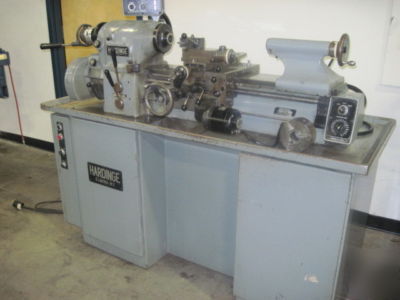

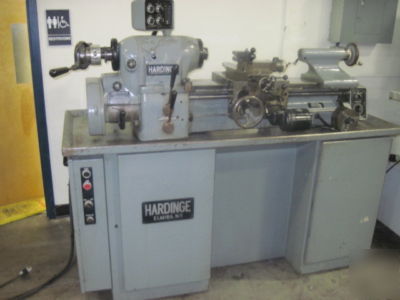

11" x 18" Hardinge Precision Tool Room Lathe, Model HLV-H, S/N 5021K, New 1973
Spindle construction HARDINGE ball bearing
Spindle nose HARDINGE taper
with round 5C collets 1-1/16"
with hexagon 5C collets 7/8"
with square 5C collets 3/4
with step chucks 1-1/16" - 6"
with jaw chucks 5"
with expanding collets 3"
Variable spindle speeds 125 - 3,000 RPM
Hole through spindle 1-1/4"
Swing over bed 11"
Swing over carriage 9"
Swing over cross slide 6"
Distance between centers 18"
Compound slide travel 3"
Carriage power feed range 5/16 - 7 IPM
Cross slide power feed range. 3/16 - 4 IPM
Tailstock spindle diameter 1-3/8"
Tailstock spindle taper 2 MT
Inch threading range (36) 11- 108 TPI
