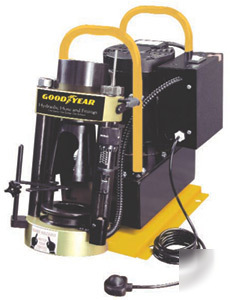

Goodyear PC150 perma crimper
The PC150 is a stationary crimper with more power to manufacture factory quality hose assemblies, quickly and easily. Its open design with removable pusher and slide in die configuration allows for good visibility and easy loading of dies and hose assemblies. Crimp diameter is set and controlled with an easy to read micrometer. Designed to handle higher volumes in a shop environment, the PC150-2 includes the crimper and 2 HP pump on a common base, pressure plate, compression ring, die ring pusher, stop/start remote pendant switch, metric micrometer, adjustable coupling stop, adjustable retraction stop and work light. The optional PC150-1 includes all the components of the PC150-2 and a 1 HP pump.
* Easy to read, fully adjustable metric micrometer allows precise setting of crimp diameters to an accuracy of +/- .1mm
* Open design with vertical feed for good operator visibility
* Removable pusher and spring loaded die set for easy loading
* Automatic shut off for precise crimps
* Adjustable Retraction Stop limits ram retractions for quick repetitive crimps
* Adjustable coupling stop for accurate, repetitive positioning of the assembly inside the dies
* Two piece, slide in die set for easy installation.
* Common base for bench mounting
* Color coded die sets to speed die selection and set-up
* Pneumatic activation (no electric wires) of remote pendant switch
* 1/4" through 1 1/2" ID, 2 wire braid hose and 4-spiral hose with all coupling styles and most bent tubes
* 2 HP 220V AC, single phase, 50-60 Hz Electric Pump (PC150-E2Pump) for PC150-2 crimper
* Optional 1 HP 110V AC, single phase, 50-60 Hz Electric Pump (PC125/150-E1Pump) for PC150-1 crimper
Mounting: Crimper and pump installed on plate
Dimensions: 32" deep x 16.5" wide x 29" high
