Jdsu acterna dsam-6000B digital catv meter dsam 6000

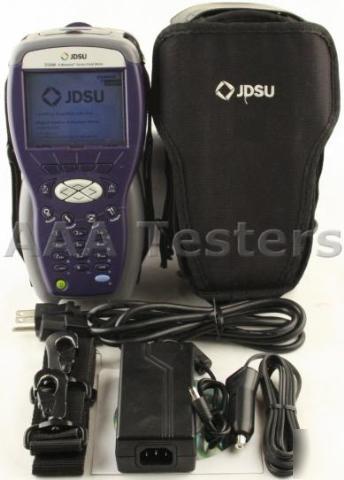

* JDSU DSAM-6000B w/ Options
JDSU ACTERNA DSAM Digital Service Activation Meter DSAM-6000B : Handheld Triple Play Field Meter :
The DSAM Wavetek Series Field Meter family provides a combination of DOCSIS/EuroDOCSIS cable modem installation meters for the on-site installation and service of high-speed data and video services.
Using exclusive digital signal processing and integrated DOCSIS/EuroDOCSIS chipset technology, the meter communicates with the network CMTS to verify suitable conditions for cable modem installation from the subscriber s location. The DSAM is also equipped with signal level meter capabilities, including spectrum scanning for ingress assessment and mini-scan analysis of up to twelve analog and/or digital channels. The meter s AutoTest capability makes installations easier and more reliable than ever before.
JDS Uniphase Corporation has incorporated exclusive DSP, DOCSIS, and analog technology to enhance your DSAM s usability and provide significant flexibility as additional features become available. Upgrading the meter can be as simple as downloading a file from the Internet and installing it onto the device using optional FDM utility software.
* All-in-one meter includes DOCSIS/EuroDOCSIS service testing and Signal Level Meter (SLM) features.
* NEW - Synch without Reboot
* NEW - Increased throughput on DOCSIS 1.1 hardware - up to 15MB downstream
* Digital carrier performance with Quick QAM summary of MER/EVM and pre/post FEC BER.
* Pre-configured automated tests for digital, analog, and DOCSIS channels.
* Increase field efficiency with an optional browser interface, over the DOCSIS RF link to your workforce management system using the IAS-100 Instrument Application Server software.
* NEW-QAM Ingress (DSAM-2600/3600/6000B - 6MHz units only)
* NEW-Sweepless Sweep: Standard on the DSAM-6000; Optional on DSAM-3500/3600
* NEW Enhanced Downstream Spectrum (Low Pass Filter, Resolution B/W (30KHz), Dwell time (1-25 ms), 4MHz - 1GHz
* NEW - Errored Seconds (ES) and Severely Errored Seconds (SES): DSAM-2500 and Up Only
* NEW - HUM for either 60Hz or 50Hz Power Grids
* DOCSIS, versions 1.0 and 1.1 based. Optional PacketCable VoIP test capability.
* 4 to 1000 MHz range; 8 MHz and 6 MHz models.
* Weather and shock-resistant enclosure.
* Weighs less than 3 lb (1.4 kg).
* Analog and digital signal level capabilities.
