4-gang/job box casters 2-fixed 2-swivel w/bolts

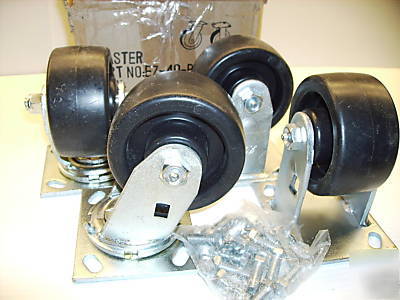

4-SWIVEL CASTERS IN THE BOX 4" DIA. X 2" WIDE X 5-1/2" TALL, 500 LB CAPACITY EA. THE MOUNTING BASE PLATE IS: .22" THICK 4" X 4-1/2" IT HAS .43" BOLT HOLES 2-3/4" OC & 3-1/4"OC IT COMES WITH 16 3/8" BOLTS AND LOCK WASHERS. THERE ARE GREASE FITTINGS ON THE WHEEL AND THE SWIVEL PART.THERE ARE FOUR KNOTCHES ON THE BOTTOM OF THE SWIVEL PART SPACED 90 DEGREES APART FOR A WHEEL LOCK TO BE INSTALLED IF NEEDED.THESE CASTERS RETAIL FOR 135.00 FOR A SET OF 4 IN GRAINGER. THANK YOU FOR LOOKING.
