Waldrich coburg double column way grinder

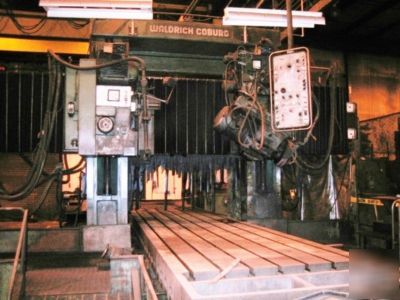

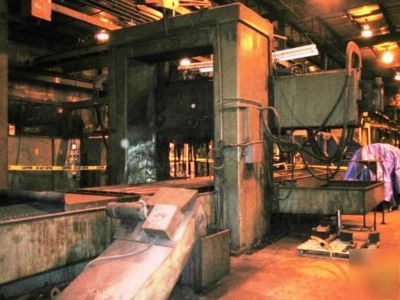

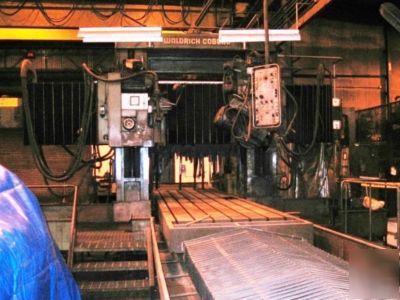

Waldrich Coburg Double Column Way Grinder
Table Size ........................... 60" x 285"
Maximum Grinding Length .............. 240"
Maximum Grinding Width ............... 60"
Maximum Grinding Height .............. 60"
Distance Between Uprights ............ 68"
Maximum Work Piece Weight ............ 40,500 Lbs.
Table Clamping Space ................. 60" x 240"

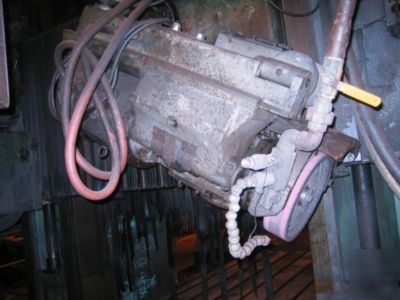

GRINDING HEAD FOR PERIPHERAL GRINDING
Drive Capacity ....................... 20 HP
Grinding Wheel ....................... 23.6" x 3.93"
Speed of Grinding Spindle ............ 1000 RPM
Horizontal Feed ...................... 0.2"-19.7"

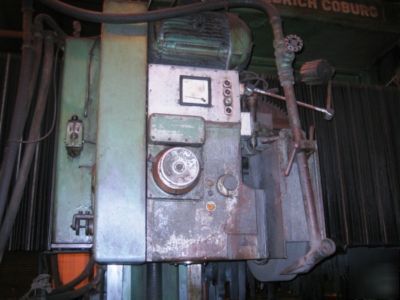

GRINDING HEAD FOR FRONTAL & PERIPHERAL GRINDING
Drive Capacity ........................ 8 HP
Max. Dimensions of Grinding Wheel ..... 15.7" x 2.36"
Max. Dimensions of Cup Wheel .......... 9.84"
Speed of Grinding Spindle ............. 1200-2400 RPM
Horizontal Feed ....................... 0.2"-19.7"
Swiveling Range ...................... +/- 180 Deg.
Grinding Heads for Frontal & Peripheral Grinding
2-Axis Accurite Digital Readouts for Each Head
Magnetic Separator & Filtration System
