New nitto kohki wa-3500 semi-auto mag drill.

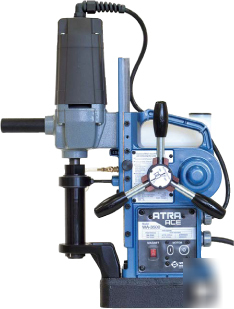

New Nitto Kohki WA-3500 Semi-Automatic Mag Drill.
Reduce costs and increase efficiency. With a Semi-Auto Drill one operator can run multiple drills at the same time. Set up the drill and switch to automatic mode and let the drill do the work. Automatic drills also extend the life of cutters by letting the machine regulate the speed and feed it eliminates an operator overloading a drill and cutter.
1-3/8 x 2 hole drilling capacity
Semi-automatic feed mechanism
Powerful 1100 watt double insulated motor
Overload stop detection system helps prevent motor and
Load detection system monitors and regulates motor
Sealed arbor system with through spindle coolant
Built-in motion detection sensor
One-Touch arbor system No tools required for cutter
Precision machined die cast aluminum mainframe, motor
slide and arbor support bracket
Power Source (Single Phase) 110 - 120 V AC 50 / 60 Hz
Hole-cutting capacity Hole Diameter Plate Thickness
One-touch type Jetbroach 11/16" to 1-3/8" 3/8" to 2"
One-touch type Jetbroach 7/16" to 1" 3/8" to 1"
Magnet Holding Power 1,583 (720) N (kgf)
Magnet Dimensions 3-5/8" x 8-1/2"
8 x 10 mm combination wrench
Molded plastic carrying case
