Mastech digital capacitance inductance ttl logic meter

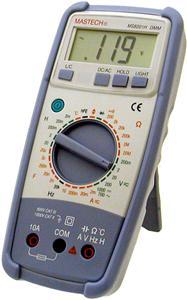

Mastech Digital LCR Meter, MS8201H
The Mastech MS8201H is a fully featured digital multimeter as well as a LCR meter, you can use it to measure AC/DC voltage and current, resistance, capacitance, inductance, frequency TTL logic and even temperature. You can hardly find any other meter that does so many but cost so little in the market.
SPECIFICATIONS: (click for detailed specs)
DCV:200m/2/20/200V 0.5%, 1000V 0.8%
ACV:200mV 1.2%,2/20/200V 1.0%,700V 1.2%
DCA: 2m/20mA 1.0%,200mA 1.5%,10A 3.0%
ACA: 2m/20mA 1.2%,200mA 2.0%,10A 3.0%
Resistance:200/2K/20K/200K/2M/20M Ohm 1.0%
Capacitance:2n/20n/200n/2u/20uF 4.0%
Inductance:2mH/20mH/200mH/2H/20H 4.0%
Temperature:-20 C-1000C 3.0%
Audible Continuity <50 Ohm
* Bonus keychain LED flashlight with our web address on it.
