Jet 754041 sbr-40N shear/brake/roll

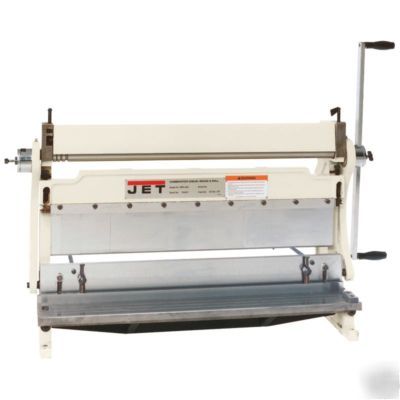

Jet 754041 SBR-40N Shear/Brake/Roll
* COMBINATION SHEAR, BRAKE AND ROLL
* Combination shear, brake and roll in one compact machine
* Right or left hand operation
* Shear can be used for mild steel, aluminum, brass, copper, lead, plastic and zinc
* Brake is equipped with easily removable fingers that permit angle, channel, box and other complex bending operations
* Slip rolls are precision turned and ground with wire grooves
* Spring-loaded work hold down
* Width of upper Dies (in.) 1, 1-1/2, 2, 2-1/2, 4, 7,10, 15
* Upper Die Height (in.) 3-3/8
* Min. Forming Radius (in.) 1
* Wire Grooves (in.) 1/8, 3/16, 1/4
* Number and Diameter of Rolls (in.) 3 and 1-5/8
* Mild Steel Capacity (Gauge/in.) 20/30
* Base Dimensions 14-1/2 x 32-3/8
* Size of Slip Roll (in./L x W) 40 x 1-5/8
* Overall Dimensions 58-7/8 x 22 x 27-1/2
Free Residential , Free Liftgates
