Hp/agilent 34922A-34922T 70-channel mux for 34980A

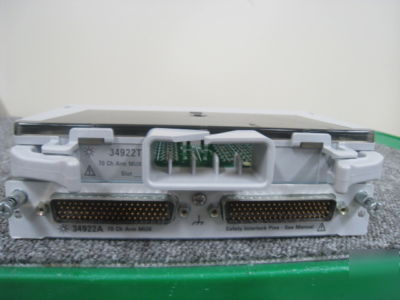

HP/Agilent 34922A-34922T 70-Channel Armature Multiplexer for 34980A
The Agilent 34922A module for the 34980A Multifunction Switch/Measure Unit offers high density multiplexer switching in a compact size. It combines dense, multi-function switching with 100 channel/second scan rates to address a broad spectrum of data acquisition applications. Current measurements can be accomplished with user provided shunt resistors. Standard 78-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions.
Mix 2- or 4-wire configurations
300V, 1A switch; 2A carry current
Latching armature relays, with relay counter
34922T Terminal Block for 34922A 70 chan Armature Multiplexer
