Disamatic size b auto. vert. flaskless molding machine

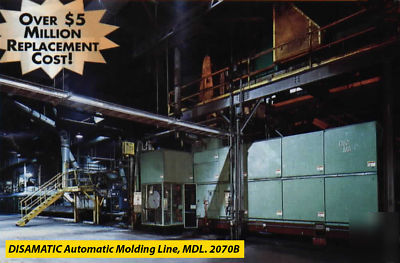

ONE Preowned DISAMATIC Size B Automatic Vertical Flaskless Molding Machine
Mdl. 2070B, S/N 88-3035, NEW 1988
FABRICATED RETURN SAND BIN, 200-T
(2) G/K VIBRATORY OSCILLATING FEEDERS APPROX 36 W X 8 L
SAND BIN DISCHARGE BELT CONVEYOR, 42 W 15 L
SAND MULLER BELT CONVEYOR, 42 W X 25 L
SAND MULLER INCLINED BELT DISCHARGE CONVEYOR, 42 W X 235 L
INCLINED BELT PREPARED SAND CROSS OVER CONVEYOR, 42 W X 35 L
DISAMATIC MOLDING MACHINE SAND HOLDING BIN
CLAY HOLDING BIN & PADDLE TYPE DISTRIBUTION SYSTEM
DISAMATIC SAND FEED BELT CONVEYOR & AERATOR
(1988) DISA CORE SETTER STATION, MDL. 2070B, S/N 88-3030, PATTERN CHANGER, PRECISION MOLD CONVEYOR, AUTOMATIC MOLD CONVEYOR
MODERN AUTOPOUR STOPPER ROD & SELCOM LASER SYSTEM, TYPE HOT MELT MOLD POURING SYSTEM, HOLDING FURNACE, HICKMAN INOCULATION SYSTEM

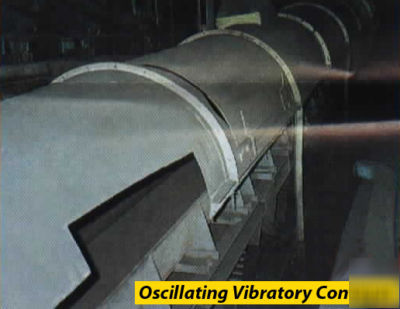

WALCO OSCILLATING VIBRATORY MOLD DUMP CONVEYOR, 4 W X 19 L
(4) WALCO INCLINED OSCILLATING VIBRATORY CONVEYOR, 42 W X 37 L, 30 HP, WATER COOLED, TOP MOUNTED DRIVE
WALCO INCLINED MOLD SHAKEOUT CONVEYOR, 44 X 29 X 14 D
DIDION ROTARY SHAKEOUT, MDL. MD100, 6 DIA. X 40 L, CHAIN DRIVEN
G/K INCLINED SAND & MOLD OSCILLATING CONVEYOR, MDL. SCRT-36.19, S/N C6570-1
PICK AND SORT STATION & BELT CONVEYOR 42 W X 60 L
SHAKEOUT SAND BELT CONVEYOR, 36 W X 16 L
RETURN SAND BELT CONVEYOR, 42 W X 60 L
ROTARY SCREEN, APPROX. 4 DIA. X 12 L
RETURN SAND INCLINED BELT CONVEYOR, 42 W X 200 L
SAND COOLING BELT FEED CONVEYOR, 32 W X 80 L
LOWER RETURN SAND BELT CONVEYOR, 30 W X 250 L
FABRICATED NEW SAND STORAGE BIN, VIBRATORY TYPE SAND FEEDER
RETURN SAND CROSS OVER BELT CONVEYOR, 42 W X 25 L
INCLINED LIVE BELT SAND BIN CONVEYOR, 42 W X 30 L
BACT WET TYPE DUST COLLECTOR & 200 HP BLOWER, SLUDGE TANK, ETC.
NEW REPLACEMENT COST FOR THE ENTIRE SYSTEM IS OVER 5 MILLION DOLLARS
PRICE: ON SITE, (GRAFTON, OH) . .. $650,000.00
