Tektronix AWG610 arbitrary function/waveform generator
Tektronix AWG610 Arbitrary Function/Waveform Generator: 1 Hz to 260 MHz
Standard function generators offer limited capability when compared to the robust capabilities offered in modern arbitrary generators. Today, in fact, we can consider the powerful AWG Series as truly mixed signal sources. In addition to the AWG's ability to replace conventional generators in applications, AWGs also provide other powerful capabilities.
For example, designers must test their products to operate under the actual conditions which their design will encounter in the "real world." However, real-world test signals are often not ideal and may have undesirable components or impurities. These conditions may also be observed as either repetitive or infrequent amplitude and/or frequency anomalies. Modern arbitrary waveform generators are ideally suited to simulate all of the conditions encountered including both ideal and anomalies.

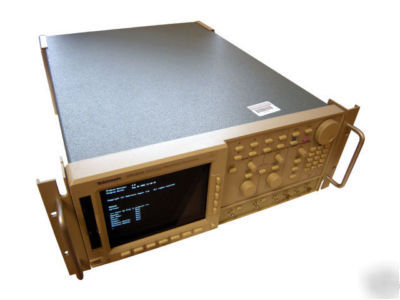

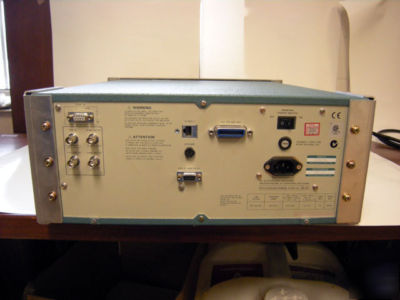

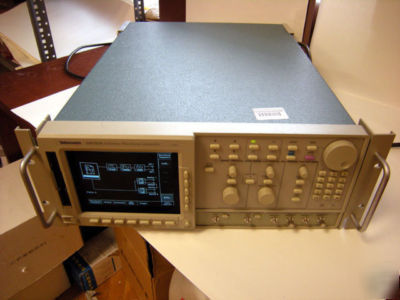

This is a used, Tektronix AWG610 Arbitrary Function/Waveform Generator: 1 Hz to 260 MHz
* 2.6 GS/s Sample Rate to Test High-speed Devices and Subsystem
* 1 Analog and 2 Digital Output Markers to Produce Complex Mixed Analog and Digital Signals
* 8 M Point Record Length for Long Signal Playtimes
* 8-bit Vertical Resolution for Precise Signal Replication
* Analog Bandwidth to Over 800 MHz
* EZ Function Generator Mode Allows Quick Creation and Edit of Sine, Square, Triangle, Ramp, Pulse and DC Waveforms
* Waveform Quick Editor with up to 400 fs Edge Timing Resolution Delivers Output Edge Control with Greater Timing Precision
* Real-time Sequencing Creates Infinite Waveform Loops, Jumps, Patterns and Conditional Branches
* Built-in Read Channel and Data Pattern Editing Capability
* GPIB and LAN (10Base-T) Interfaces
* Built-in Hard Drive for Mass Data Storage
