New 3M 701 test kit for static control surfaces unused

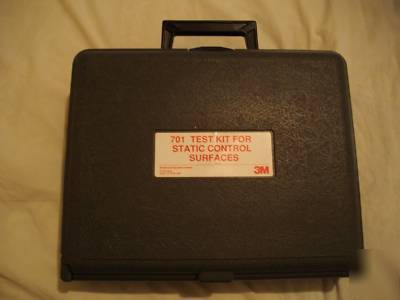

3M 701 Test Kit for Static Control Surfaces

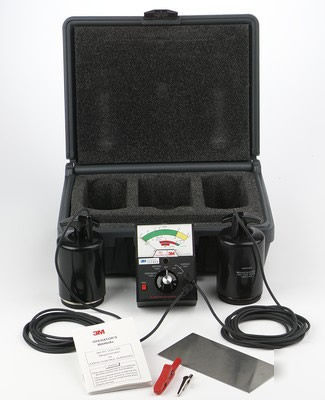

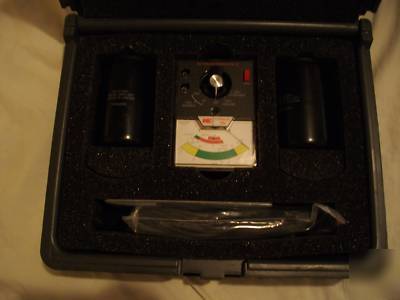

This kit contains a lightweight, user-friendly megohmmeter plus all of the components needed to make testing mats and other surfaces simple and accurate. All of the items are packaged in a foam-lined carrying case.
The kit meets the intent of ANSI/ESD Standard 4.1, Worksurfaces Resistive Characterization, ANSI/ESD Standard 7.1, Floor Materials Resistive Characterization of Materials, and MIL-PRF-87893, Workstation, Electrostatic Discharge (ESD) Control, for auditing purposes. The meter has separate scales and test settings for measuring surface-to-ground and surface-to-surface resistance at two prescribed test voltages (10 V and 100 V), and system continuity. The easy-to-read scales are both color-coded and numbered.
1 Megohmmeter 12 oz. (340 g)
1.8 H x 3.3 W x 4.6 in. L (4.57 x 8.38 x 11.68 cm)
2 Test Weights, 5 lbs. (2.27 kg) each
2 Test Leads, 10 ft. (3 m) each
