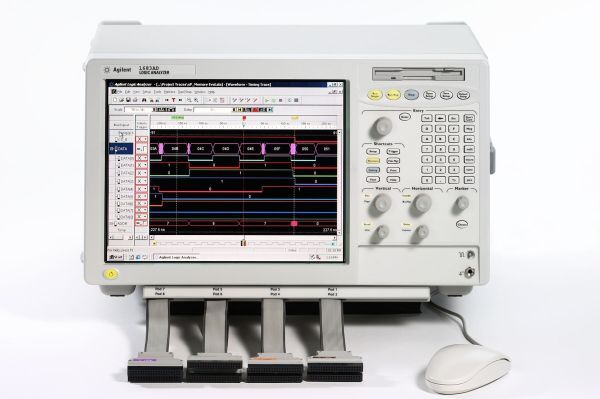

Hp/agilent 1683AD 34 channel color logic analyzer with
34 Channel Color Logic Analyzer with 4M Memory Logic Analyzer Configuration 68-channel portable logic analyzer 12.1-inch (30.7 cm) color display, 600 x 800 resolution Intuitive user interface and familiarity of Windows XP Pro Comprehensive single-ended signal support, threshold adjustable from -6 V to 6 V (10 mV increments) Timing Analysis (Asynchronous Sampling) 800 MHz / 400 MHz (half/full-channel) conventional timing, 1 M / 512 K memory depth 200 MHz transitional timing, 256 K memory depth State Analysis (Synchronous Sampling) 200 MHz state analysis, 256 K memory depth Automated threshold/sample position setup for accurate measurements on high-speed buses Simultaneous eye diagrams on all channels identify problem signals quickly
