Bemco F100/350-8 environmental chamber
This BEMCO F100 Environmental Chamber has recently been serviced and has been tested accurately down to -60 C and up to +185 C. We did not test further than that as it wasnt needed for our application.

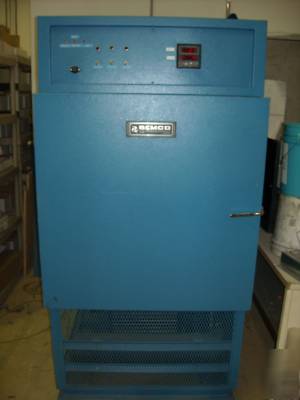

BEMCO F100 / 350-8 Temperature / environmental shock chamber
Temperature range: -73 C to 200 C / 100 F to 350 F

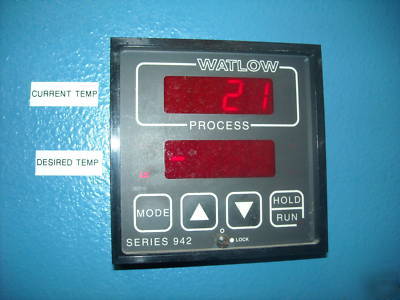

Microprocessor based digital temperature controller: Watlow series 942 ramping controller

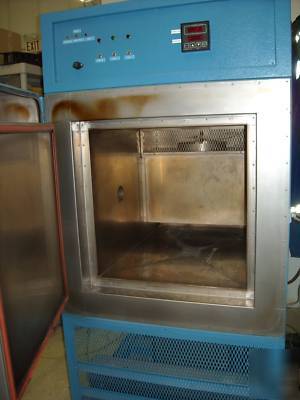

The F series chamber is designed for precisely repeatable environment control for MIL-STD testing procedures, for critical component production testing and for laboratory environmental testing. The chamber is constructed from heavy gauge steel. The door is a plug design. This effectively increases the thermal barrier length and prevents distortion due to thermal expansion and contraction cycling. A cam latch mechanism seals the dual gasket door against the enclosure sealing surfaces. The workspace inner liner is fabricated with heavy gauge reinforced 304 stainless steel which is continuously heli-arc welded at the joints. The workspace includes an anti-vortex air circulation system, temperature sensors, air heaters and cooling coil.
Approx 1300 lbs - 3 ft Wide x 5 ft Long x 6.5 ft High
