Superior slo-syn SS2000D3I stepper drive control+ motor
Superior Slo-Syn SS2000D3i Stepper Drive Control+ Motor

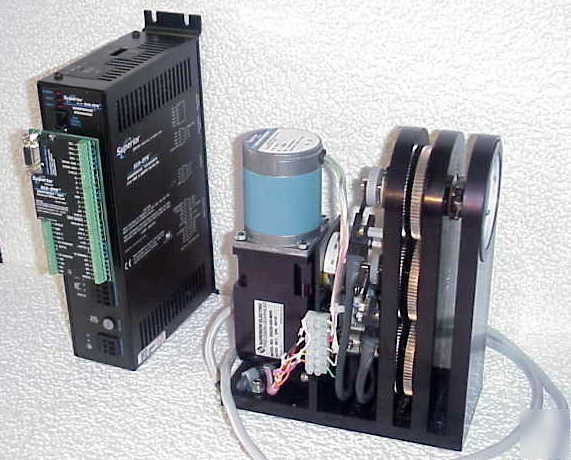

Superior Electric Slo-Syn SS2000D3i Micro-Stepping Controller/Drive (Inculding XWC External Wiring Card)with Superior Electric Stepper Motor (200Steps/Rev) , Superior Electric Gear Reducer ( Right Angle- 50:1 Ratio), and Stearns Electric Brake.
Two Identical Units Available. Price Is For One Unit.
These Units Are Like New. New Cost Per System Is Over $2600.
For A Lot More Information On the SS2000D3i Programmable Drive, Please Click on The Following Link CLICK HERE This complete unit came out of a specialized piece of research equipment. Unit wasn't used long and was always operated in an extremely clean environment.
Basically the arm (see photos of the plastic enclosure with arm) was controlled to traverse back and forth between two tanks of solutions at varying speeds.
This is a very, very, nice setup. Extremely Well Constructed Fixture that the stepper motor, gear reducer, and brake are attached to.
Superior Electric SS2000D3i WarpDrive Programmable Microstepping Controller / Drive , Input: 115 Volt, 5 amp 50/60 Hz
Superior Electric Stepper Motor- M062-LE09 (8 leads), 1.65 VDC, 4.7 Amps, 200 Steps/Rev
Superior Electric Precision Gearhead- model: SR23S-050-M000, Ratio: 50:1, Right Angle Type
Stearns Electric Brake- model: 320240100CED, 24 VDC, 7 watts
Plastic Enclosure with 11" Plastic Travel Robot Arm- Cleanroom Quality Plastic
MORE INFO ON SS2000D3i CONTROLLER
Programming the position controller is done via a Windows Based graphical interface and uses the same language as Superior Electric's popular versatile TDC and MX2000 controllers. In addition the New MotionWriter , point and click graphical user interface is available for use with the SS2000D3i/D6i positioning systems
Packaged drive, control and power supply 100-120V 10% AC input
Utilizes robust SS2000D3/D6 drive design
Motor phase current selectable up to 6 amps (D6i)
Optically isolated I/O, 8 Inputs, 4 Outputs
Windows based software development
utility for easy programming on any PC Easy to use BASIC - like programming language
Additional 8 inputs and 4 outputs, non-isolated
Encoder input for closed loop operation (differential or single ended)
One 0-10V analog input (10 bit resolution)
BCD interface with separate connector
2 serial ports, RS232 / 485 up to 38K baud
Built-in ac line filter and MOV's for transient protection
Patent-pending digital microstepping current control
Smoother motor operation at low speeds
Meets IEC 1000-4-4 standard for electrical fast transient ("noise") immunity
UL recognized and CE compliant
Optional terminal board for easy wiring
We are a business with a loading dock. This item is located in our Rockingham NC 28379 warehouse.
