Shop fox vertical mill with power feed -model# M1008

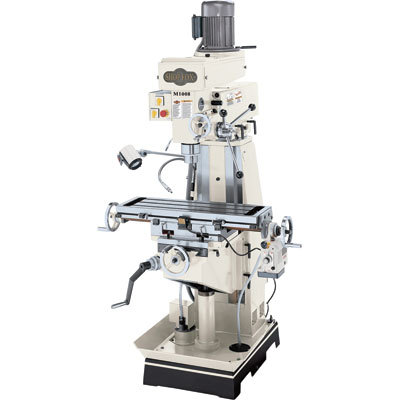

SHOP FOX Vertical Mill with Power Feed -Model# M1008
The SHOP FOX Vertical Mill M1008 is built rigid and heavy for close tolerance machining in the small shop or light industrial setting. The 3-axis spindle head and 3-axis rotating table allows virtually every type of cut possible with a vertical mill. Constructed with extra-thick castings, powder-coated paint and precision ground table and ways. HP: 2, Volts: 220 (single phase), Speed (RPM): 270 - 2,950, Speeds (qty.): 9, 360 Head Swivel: No, Draw Bar: Yes, Chuck Size (in.): R - 8, Max. Spindle Distance (in.): 22, Worktable L x W (in.): 9 1/2 x 31 1/2, Light Included: Yes, Stand Included: No, Dimensions L x W x H (in.): 41 5/16 x 41 3/4 x 80 Power Transfer: V-Belt drive Spindle travel: 5in. Table travel (longitudinal): 15 1/2in. Table travel (cross): 7 7/8in. Knee travel (vertical): 13in. Table swivel: 45 left and right Head tilt: 90 left and right Turret or column swivel: 90 left and right T-slots: 3 on 1 5/8in. centers, 1/2in. stud Range of speeds: 270, 390, 490, 615, 860, 930, 1600, 1960 and 2950 RPM Coolant pump/nozzle Longitudinal power feed
