#9046 -5" x 10" taft-peirce hand feed surface grinder

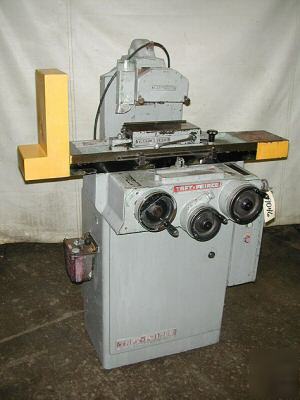

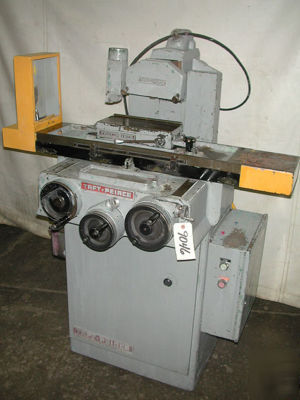

TAFT-PEIRCE SERIES 100 PRECISION HAND FEED SURFACE GRINDER
Table movement per revolution of hand-wheel 3.4"
Crossfeed movement per revolution of hand-wheel .100"
Standard handwheel graduations .001"
Fine feed handwheel graduations .000025"
Wheelhead movement per revolution of handwheel .050"
Standard handwheel graduations .0005"
Wheel size 7" x 1/2" x 1-1/4" Hole
Overall dimensions 61"W x 45"D x 66"H
1 HP 230/460 3/60 3,450 RPM Direct drive spindle motor
5" x 10" Permanent magnetic chuck
Taft-Peirce 3,450 RPM direct drive spindle
