Static control workstation test meter

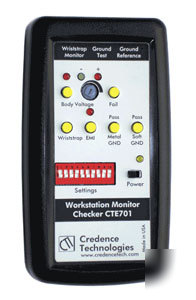

Static Control WorkStation Test Meter
3M Static Control WorkStation Test Meter
Verify the operation of your workstation monitors with this easy-to-use, self-contained, portable system.
The Workstation Monitor Checker was designed specifically to verify the proper operation of your dual wrist strap, workstation, and ground monitors. It simulates the proper resistances and signals to check for the correct response and verify that the monitors are in compliance with your specifications.
This unit was designed to work with Credence Technologies' monitors such as WS Aware, and Ground Master. But, it can also be used to verify the operation of most other monitors on the market.
Features: * 3.5MM Jack for Wrist Strap Monitor Test
* EMI Button and LED for Metal Grounds
* Banana Jack for Ground Test
* Banana Jack for Reference Grounds
* High (Fail Limit) Switches for Metal and Soft Grounds
* Low (Pass Limit) Switches for Metal and Soft Grounds
* Threshold Setting Switches
* Body Voltage Set Potentiometer
* Pass (Low Limit) Switch for Wrist Straps
* High Voltage on Operator Indicator
Applications: * Disk Drive Assembly
* GMR/TMR Head and stack assembly
* Electronic Assembly ndustrial Robotics
* Anywhere that ESD is an Issue
For more detailed information, please click here.
