> Slope laser level for grade up to 10%
Slope laser level for grade up to 10%
ML 11 Laser Level from Mikrofyn
http://www.mikrofyn.net/index.htm
Instrument is USED, it works very good, just calibrated..

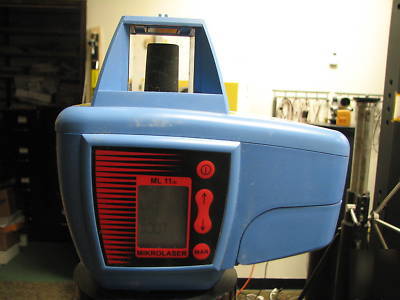

The ML 11x is an automatic levelling instrument. The laser has been specially developed for the builder who needs to be able to work alone, quickly and accurately.
Set up of the laser is very simple. Just place the laser approximately horizontal, then the automatic self-levelling will correct the beam's position up or down. When the laser is used without slope, the automatic self-levelling keeps the beam horizontal, even if the laser is exposed to knocks and vibration.
As something very special for a laser in this price class, the ML 11x can work with slopes from 0 to 10% in the X-direction. To ensure maximum precision, the laser self-levels before moving to the set slope.
If the laser becomes exposed to knocks or vibrations whilst working with slope, a Level Alarm will be activated.
The ML 11x has a fixed rotation speed of 600 rpm, which also makes it well-suited for working with various Machine Control Systems.
The ML 11x is built to be strong and robust, with the rotor head sealed in a glass housing, making the laser 100% watertight and dust-proof.

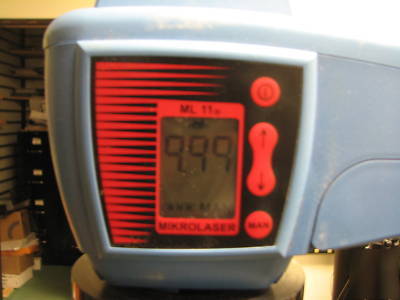

The ML 11x has an easy-to-read LCD display and a user-friendly control panel. The display, where all messages are shown in the chosen language, gives information about the input slope, working mode and battery power.

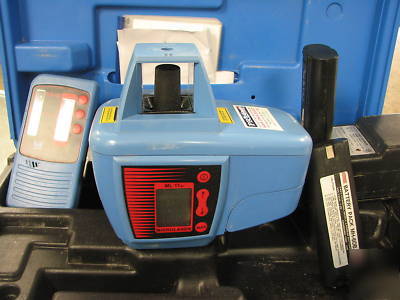

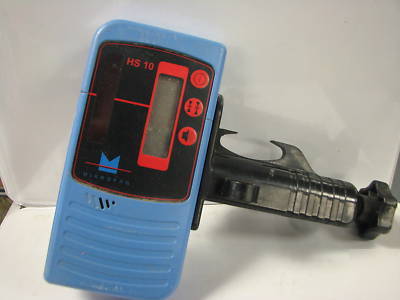

The ML 11x is supplied in a transport case with battery, fast charger and Hand Detector HS 10.
Working range (with laser sensor): 150 m
Grade adjustment range, semi-automatic: 0 - 10%
Battery: 7.2 V Makita type - 1.4 Ah.
Battery life, approx.: 20 hours
Recharge time, approx.: 1 hour
Dimensions (L W H), mm: 195 110 180
