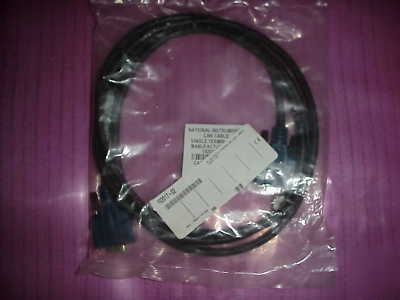

National instruments can terminated high-speed cable
CAN Cable (Single Termination)
* High-speed CAN cable with 9-pin D-Sub female connectors
* 120 ohm terminating resistor located in cable end closest to white part number label
* Compatible with all NI PCI, PXI, USB, PCMCIA, and CompactRIO high-speed CAN interfaces
* Cable impedance: 120 ohms, resistance: 93 ohms/km at 20 C, delay: 5 ns/m
* Two 24 AWG twisted pairs: one for CAN_H and CAN_L and one for V+ and V-
* CiA-DS-102 standard wiring: Pin 2: CAN_L, Pin 3: V-, Pin 5: Shield, Pin 7: CAN_H, Pin 9: V+
NI controller area network (CAN) cables are ideal for connecting NI CAN interfaces to CAN devices, breakout boxes, other interfaces, and accessories. This cable features a built-in terminating resistor in one cable end to simplify wiring to high-speed CAN devices. It meets ISO 11898 cable specifications and works with all NI high-speed CAN interfaces.
NI CAN cables with single termination are recommended for connecting CAN interfaces to networks and devices that have no termination installed. For connecting CAN devices or networks that already have termination or implement low-speed/fault-tolerant CAN, use an NI CAN cable without termination.
