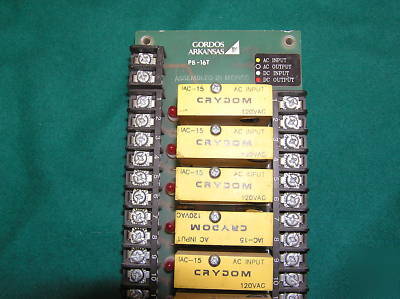

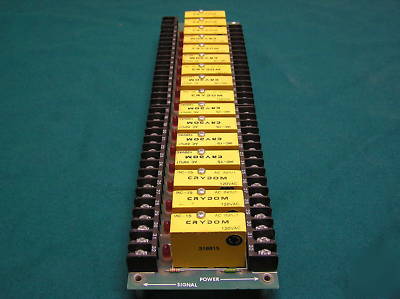

Gordos arkansas pb-16T with 16 iac-15 switching modules
CRYDOM IAC-15 Description and specifications.
Solid state I/O switching modules deliver an electrically clean, photo-isolated, noise-free "output" interface from logic level control systems to external loads such as motors, valves, solenoids, etc. - or an "input" interface from the load or sensors to microprocessor or computer-based logic level systems. Designed for long, reliable service in demanding industrial environments.
Nominal input voltage [Vrms/Vdc] 120
Minimum Input Voltage [Vrms/Vdc] 90
Maximum Input Voltage [Vrms/Vdc] 140
Maximum Input Current [mA rms] 10
Allowable Off-state Current [mA rms] 3.0
Allowable Off-state Voltage [Vrms/Vdc] 50.0
Nominal Logic Voltage [Vdc] 5-15
Minimum Logic Voltage [Vdc] (X4 Series) 8.5 (10)
Maximum Logic Voltage [Vdc] (X4 Series) 18.5 (20)
Typical Logic Supply Current [mAdc] 10
Max. Logic Supply Current [mAdc] 16
Max. Logic Sup. Leak. Current [ Adc] 10
Maximum Output Voltage [Vdc] 30
Maximum Output Current [mAdc] 50
Max. Output Leakage Current [ Adc] 10
Max. Output Voltage Drop [mVdc] 200
Maximum Turn-on Time [msec] 20
Maximum Turn-off Time [msec] 30
For more information type crydom iac-15 pdf in your search engine.
