Sgs-1224AHD kent 12" x 24" hydraulic surface grinder

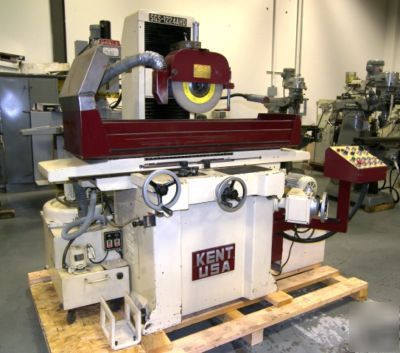

Preowned 12" x 24" KENT Hydraulic Surface Grinder, SGS-1224AHD S/N 9106456 (New 1991)
Maximum distance from centerline of spindle to top
Maximum longitudinal table travel
Variable table speed, hydraulically actuated
Automatic cross feed increment
Cross feed handwheel per graduation
Cross feed per revolution of handwheel
Down feed per revolution of handwheel
0 to .001" (variable, 10 steps in
14" diameter x 1-1/4" width x 5"
Turcited "V" and flat table ways
Double "V" saddle ways with Turcite lining
Hydraulically actuated longitudinal table traverse
Electromechanically actuated automatic cross feed
Automatic incremental down feed in (10) steps in .0001" increments
Plunge and surface grinding modes of operation
Motorized power rapid elevation of wheelhead
12" x 24" HSING CHONG electro-magnetic chuck with rheastat mounted on control
console for variable hold capability
Manually operated over-the-wheel straight line dresser
Centralized lubrication system
Combination coolant system and dust collector with 1/2 H.P. 3/60/220-440 volt suction
External hydraulic system with 2 H.P. 3/60/220-440 volt hydraulic pump motor
5 H.P. 3/60/220-440 volt spindle drive motor and electrical controls
Machine is wired for 220 volt operation.
