Cnc lathe le blond baron 60 fanuc 18 t steady $ reduced


NOTE: WE ADDITIONALLY HAVE A BARON with G E HLX CONTROL WITH 9" CRT LISTED AS ITEM #250577999889
You are invited to purchase or "MAKE YOUR BEST OFFER" on a CNC LATHE being a
Le Blond Baron 60 with Fanuc 18T CNC Controller and Steady Rest with the following specifications:
When retrofitted with Fanuc 18T CNC Controller in 2002 machine was gone thru completely and any problems or replacement part added.

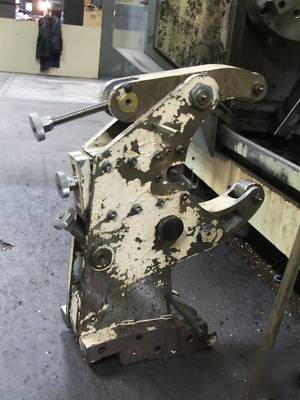

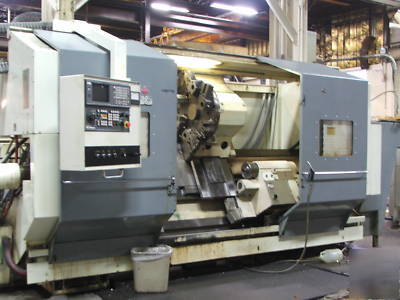

Le Blond Baron 60 with Fanuc 18T CNC Controller and Steady Rest
Max. Swing (using 2.5 boring bar) ..18"
Max. Swing Over Bed 27"
Max. Swing Over Carriage 20"
Max. Turning Length .72"
Max. Weight Between Centers . .1,000 Pounds
Hole Through Spindle.................................4.62 (43" deep)

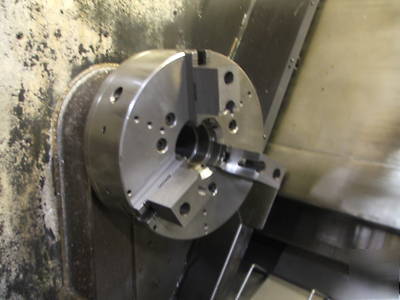

Spindle Nose...............................................A1-11
Spindle Center #5 Morse
Spindle Speeds............................................25 - 2000 rpm
Spindle Ranges............................................3 Steps
Spindle Motor..............................................50 / 60 hp.
Torque Rating .0.67 hp/rpm
Rapid Traverse.............................................400 in/min
Cutting Feeds ........................... .0.01-200 in/min

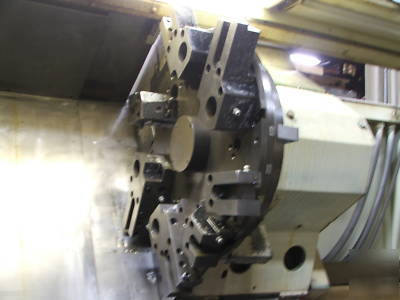

Diameter of Turret.......................................29.25
Diameter of Coupling .......................... .20
Available Mix of ID/OD Tools ..6/6, 5/7, or 4/8
Max. Diameter of ID Tools 2.5
OD Tool Shank Size ..1.5 x1.5 x6.0

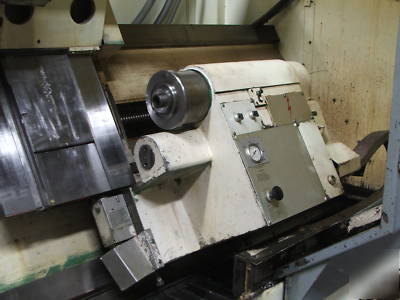

Size of Center .......................................#4 Morse
Quill Diameter .......................... .5.25
Quill Travel .. ..2

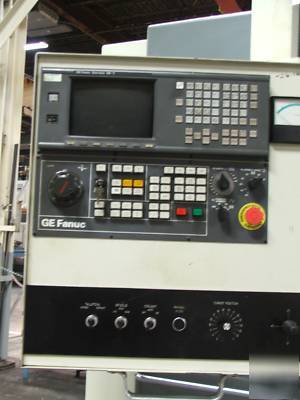

Type..................................................... ..Fanuc 18-T
Program Storage................................. .. .128,000 char.
DNC.............................................. ... .DLoG Dnet II
Fanuc 18 T CNC Controller was retrofitted to the lathe in 2000!
Maximum Positioning Error..........0.0001
Maximum Repeatability.. .. .0.00006
220/460 Volts, 60 Cycle, 3 Phase (transformer included)
This CNC LATHE being a Le Blond Baron 60 with Steady Rest is known to be in a "good" working order and can be inspected in Ohio by calling (***) 882 2765 for appointment.
