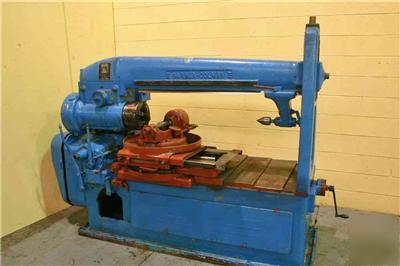

Barber colman model #16-11 type "t" gear hobber
BARBER COLMAN MODEL #16-11 TYPE "T" GEAR HOBBER
SERIAL ....................................... 200
MODEL ........................................ 16-11
TYPE ......................................... T
CENTER DISTANCE BETWEEN WORK & HOB SPINDLE ... 1 TO 8-3/4 MAX.
TRAVEL OF HOB SLIDE .......................... 12
ANGULAR RANGE OF HOB SWIVEL .................. 360 DEGREES
ANGULAR RANGE OF HOB SWIVEL SLIDE & WAY ...... 15 LEFT 195 RIGHT
FACE OF WORK TO SPINDLE CENTER LINE OF HOB ... 8 TO 42-1/2 MAX.
WORK SPINDLE CENTER LINE TO OVERARM .......... 8
CAPACITY, DIAMETRAL PITCH (CAST IRON) ........ 3
CAPACITY, DIAMETRAL PITCH (STEEL) ............ 4
DIAMTER OF HOB SPINDLE ....................... 1-1/4
MAXIMUM DIAMTER OF HOB ....................... 5
HOB SPEEDS ................................... (8) 60 TO 240 RPM
FEEDS ........................................ .010 TO 250 IPR
CHUCK ........................................ 10 4 JAW
DIAMETER OF HOLE IN WORK SPINDLE ............. 4-1/8
MOTOR ........................................ 5 HORSEPOWER
