> Apex PA03 very high power op amp amplifier w / socket

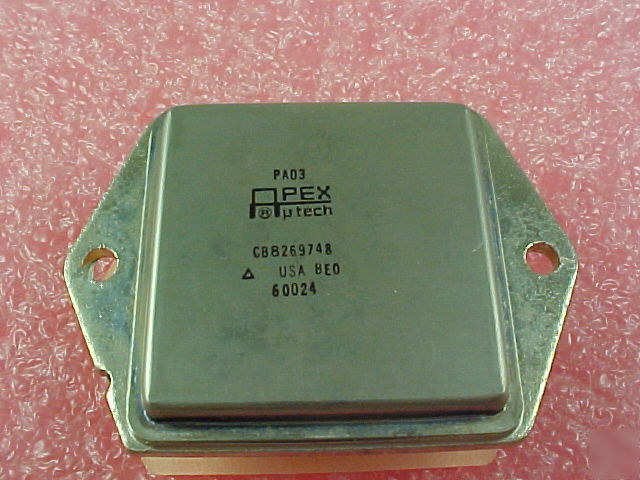

Apex PA03 very high power op amp amplifier w / socket
PA03 Very High Power Op Amp Amplifier.
Includes : MS05 socket & THERMAL WASHER 12P DIP
MO-127 COPPER POWER DIP PACKAGE
HIGH INTERNAL POWER DISSIPATION 500 watts
HIGH VOLTAGE OPERATION 75V
VERY HIGH CURRENT 30 amps
OUTPUT SWINGS CLOSE TO SUPPLY RAILS
The super power PA03 advances the state of the art in both brute force power and self protection against abnormal operating conditions. Its features start with a copper dip package developed by Apex Precision Power to extend power capabilities well beyond those attainable with the familiar TO-3 package. The increased pin count of the new package provides additional control features, while the superior thermal conductivity of copper allows substantially higher power ratings. The PA03 incorporates innovative current limiting circuits limiting internal power dissipation to a curve approximating the safe operating area of the power transistors. The internal current limit of 35A is supplemented with thermal sensing which reduces the current limit as the substrate temperature rises. Furthermore, a subcircuit monitors actual junction temperatures and with a response time of less than ten milliseconds reduces the current limit further to keep the junction temperature at 175 C. The PA03 also features a laser trimmed high performance FET input stage providing superior DC accuracies both initially and over the full temperature range.
