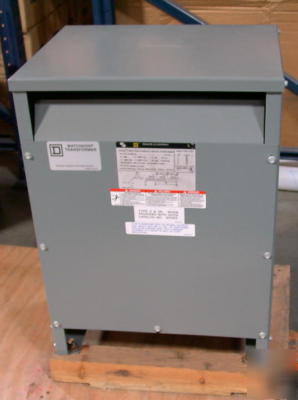

Watchdog square d transformer #15T3HFCU 480V type 2

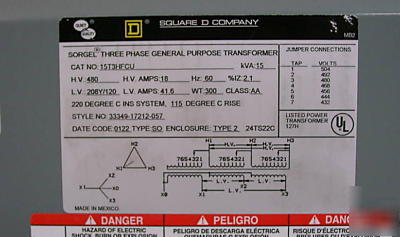

* 220 Degrees in system 115 Degrees Celsius Rise
* TRANSFORMER DRY 3PH 15KVA 480V-208Y/120V
Square-D 15T3HFCU Catalog Description:
PRIMARY VOLTAGE 480 V DELTA; SECONDARY VOLTAGE 208 V STAR/120 V; 60 HZ; POWER RATING 15 KVA; 3 PHASE; TAPS (2) +2.5 PERCENT X (4) -2.5 PERCENT; TEMPERATURE RISE 115 DEG C; FLOOR MOUNTING; NEMA 2; SIZE 20 INCH W X 16 INCH D X 27 INCH H; WEIGHT 250 LB; APPL
Square-D Three Phase Low Temperature Rise Dry Type Transformers 600v Or Less
