Hp agilent 5350B 20 ghz cw microwave frequency counter

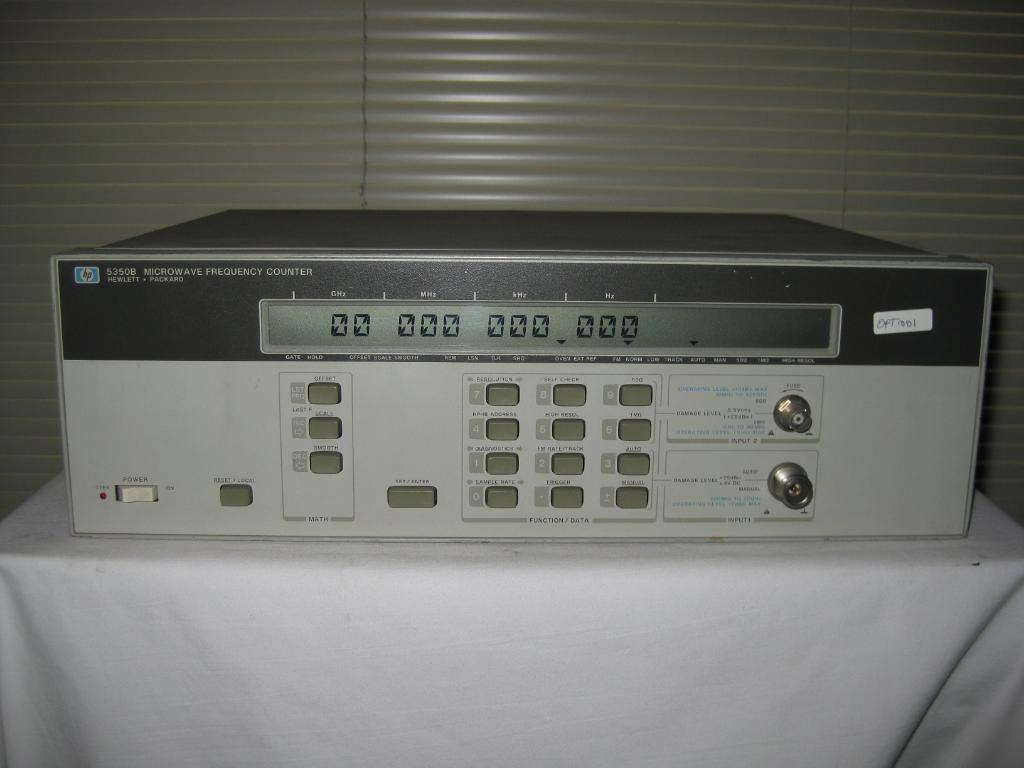

HP / Agilent 5350B 20 GHz CW Microwave Frequency Counter w/ Option 001
Built-in microprocessors provide math functions, including measurement scaling and offset. Automatic amplitude discrimination measures the frequency of the highest-amplitude signal in a multi-signal environment. A full set of diagnostic routines provides general information and troubleshooting.
The 5350B integrates easily into test systems. English-like commands simplify integration with other components, and the easy-to-read liquid crystal displays can serve as message centers for the system.
-Frequency range from 10 Hz to 20 GHz; directly measures without expensive mixers
-Sensitivity to -40 dBm ensures accurate measurement of low-energy signals
-Low kickback noise for sensitive environments; sleep mode reduces noise to -70 dBm
-Fast acquisition time (60 ms in automatic, fast acquisition tracking mode; 20 ms in manual mode) for improved throughput.
-Up to 120 measurements per second (100 in automatic mode) over HP-IB (fully programmable)
-Fast tracking speed allows effortless tracking of source drift to 1 GHz per second; ideal for measuring the response of voltage-controlled oscillator to voltage-source tuning
