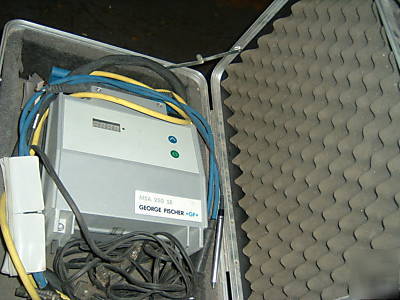

George fischer electrofusion unit
Network and generator compatible
Joins all George Fischer Sloane electrofusion polypropylene products
Advanced Transformer Technology
Network and Generator Capability
The MSA 250SE can be used to join the following piping systems: Fuseal, Fuseal Squared, Fuseal 25/50, PVDF, and PPro-Seal.
The unit has the capability to run on either network and generator power sources.
Operates on 110V/60Hz power source.
All required fusion parameters are programmed into the MSA 250SE by simply scanning a barcode specific to each fitting.
(Barcodes also provide the capability to perform program updates for new products in the field.)
The MSA 250SE has the time and labor saving features of multiple joint fusion.
Multiple joint capability significantly reduces installation time requirements and contributes directly to your bottom line.
The MSA 250SE represents the most advanced fusion technology in the industry.
Updates performed in the field
Size Fuseal PPro-Seal Fuseal 25/50 PVDF
Specification for the MSA 250SE
Input Voltage 90-130 VAC Nominal Voltage: 110 V /Generator: 110-120 VAC Nominal Voltage
Power Consumption max. 1200 W nominal output
Generator Output Performance 2 KVA Sinusoidal (unipolar operation) depending on the fitting diameter
Back-up Fuse 10 16 AT depending on the fitting size
Fusion Voltage 3,7 -32 VAC galvanically separated
Protection Type Protection class 1/IP 65
Dimensions Width: 280 mm (.91 ft.)
(measured inc. carrying handle)
Weight 11.5 kg (24 lbs.) (with cables)
Power Cable Length 3 m (10 ft.)
Extension Cord Requirement 150 (10 gauge/3 strand)
