8" x 138" g & l endomatic mc milling & centering

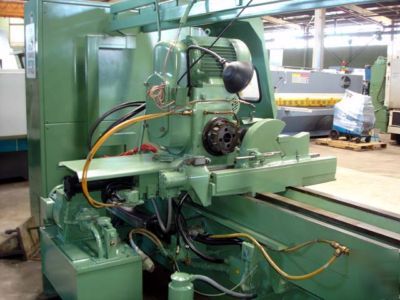

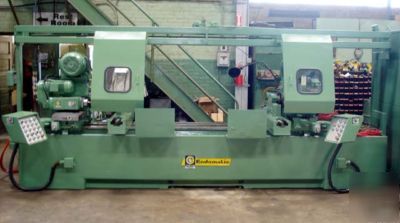

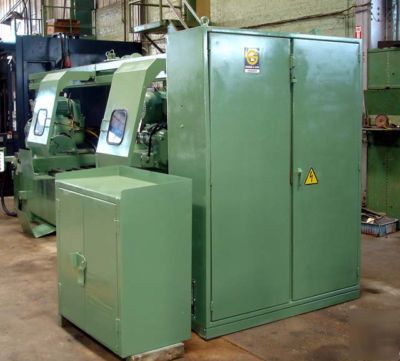

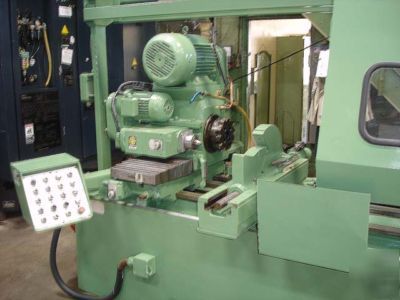

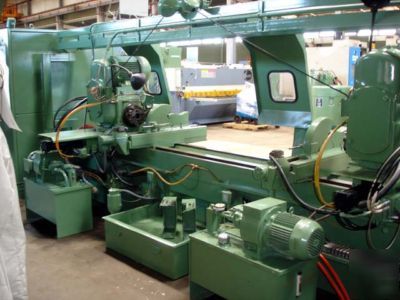

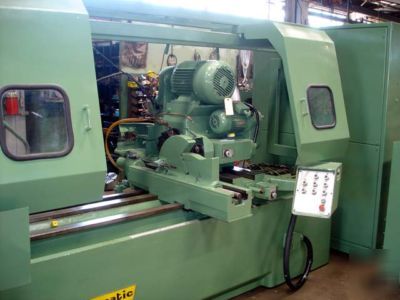

8" X 138" GIDDINGS & LEWIS ENDOMATIC MODEL MC MILLING AND CENTERING MACHINE
Motor Driven With (2) 15 HP, 3 Phase, 60 Cycle AC Volt Milling Heads. (2) 3 HP, 3 Phase, 60 Cycle, AC Drilling Heads. (2) 3 HP, 3 Phase, 60 Cycle, AC Hydraulic Power Supply Units For Each Head And Vise Unit. 1/2 HP Coolant Motor. (2) Operators Control Stations.
Automatic Cycle. RH Retractable Head That Has Extended Travel To Allow For Clearance Of Shafts Longer Than 138". (2) 3-Point Hydraulically Operated Centering Vises With Ball Screws And Clamps. Pendant Control Station At Each End Of Machine. Hydraulically Activated Infinitely Variable Feed Rates. Scale And Vernier For Precise Length Settings. Cutter Guards. Splash Guards. Coolant System. Miscellaneous Tooling. Change Gears.
Maximum Diameter Milling with 10" Cutters 8"
Maximum Diameter Milling with 8" Cutters 6.25"
Maximum Diameter Milling with 6" Cutters 3.5"
Maximum Workpiece Length (10" Cutters) 138"
Minimum Workpiece Length (6" Cutters) 4.5"
Milling Spindle Speeds (Thru Pick Off Gears) 42-290 RPM
Size of Taper in Milling Spindles #50 NST
Raid Traverse Rate of Milling Heads 100 IPM
Feed Rate of Milling Heads (Infinitely Variable) 0-100 IPM
Maximum Material Removed at Each End .50"
Drill Spindle Speeds (Thru Pick Off Gears) 377-1145 RPM
Drill Rapid Traverse Rate 100 IPM
Drill Feed Rate (Infinitely Variable) 0-100 IPM
Center Drill Diameter Minimum .25"
Center Drill Diameter Maximum .75"
