> 11 assorted lathe dog carrier drive clamp bent leg tail
11 assorted lathe dog carrier drive clamp bent leg tail
11 ASSORTED LATHE DOG CARRIER DRIVE CLAMP BENT LEG TAIL

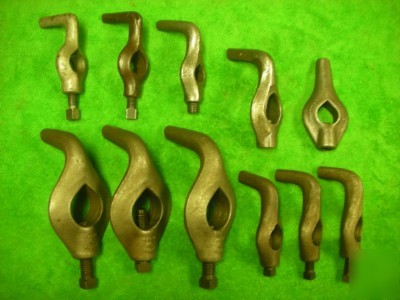

This listing is for 11 assorted lathe dogs in good overall condition with only some minor cosmetic wear such as scuffs, scratches and dings, as seen. Some are new and some are used. Some are forged and made in the USA. All but one have bent legs. All include set screws though some of the set screws may not be the originals. This is an mixed assortment of several different size lathe dogs. Size is measured by the maximum diameter capacity. There are three new high-quality lathe dogs made by J.H. Williams in the USA size 1-1/2" Vulcan LD-6A bent leg. There are two other lathe dogs made by J.H. Williams in the USA size 1" Vulcan 24 straight leg new and 1-1/8" Vulcan 4 bent leg used. There are three new bent leg lathe dogs size 1" marked LD-74H. And there are three used bent leg lathe dogs sizes 1" made by Armstrong, 1", and 3/4" Vulcan 3. Don't miss your chance to own this bulk lot now!
A lathe dog, also known as a lathe carrier, is a device that clamps around the workpiece and allows the rotary motion of the machine's spindle to be transmitted to the workpiece.
A carrier is most often used when turning between centers on a lathe, but it may be used on dividing heads or any similar situation. It is used in conjunction with a drive plate and drive pins: the plate is mounted directly on the machine spindle (as with a chuck) and the drive pin is attached to the plate. In use the carrier and workpiece are inserted between centers and the leg of the carrier rests against the drive pin.
Carriers may be of the straight leg or bent leg type. The straight leg requires the drive pin, the bent leg fits into a slot machined into the drive plate. The bent leg type is considered safer as there are (slightly) fewer protruding parts to cause accidents.
Spindle speeds are reduced when working with carriers, due to the unbalanced nature of the setup. Care must also be taken by the operator when using carriers, as it is easy to get snagged on one.
