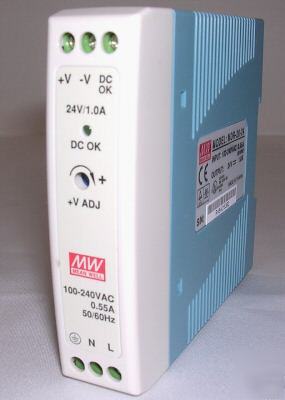

20W single output 24V industrial din rail power supply
NEW! This compact & light weight industrial DIN rail switch mode power supplies,
Output Voltage: 24Volt DC (Adjustable 10%)
Dimensions: 22.5(W) x 90(H) x 100(D)mm
.Universal AC input / Full range
.Protections: Short circuit / Overload / Over voltage
.Cooling by free air convection
.Can be installed on DIN rail TS-35/7.5 or 15
.No load power consumption ? 0.75W
? We offer different kinds of Switchmode Power Supplies.
? We ll be expecting your enquiry.
US$10.00 (By Air) 10 to14 days United States only
Item arrived quickly and as described, would recommend.
great service, fast postage. A+++
well packed and arrived as described, secure dealer
500ms,30ms/230VAC 1000ms,30ms/115VAC at full load
50ms/230VAC 20ms/115VAC at full load
COLD START 20A/115VAC 40A/230VAC
Protection type:Constant current limiting,recovers automatically after fault condition is removed
Protection type: Shut down O/P voltage,re-power on to recover
-20~+70?(Refer to output load derating curve)
Component:10~500Hz,2G 10min./1cycle,60min. each along X,Y,Z axes;Mounting:Compliance to IEC60068-2-6
I/P~O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC
Compliance to EN55011,EN55022(CISPR22),EN61204-3 Class B
Compliance to EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-1,EN61204-3 Light industry level, criteria A
236.9k hrs min. MIL-HDBK-217F (25?)
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25? of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
