Digital sound pressure level meter 30~130 db decibel bp

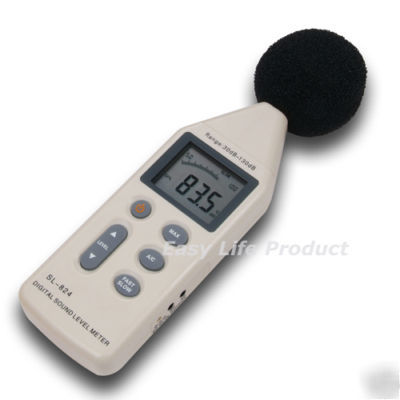

This Digital Sound Level Meter (SL-824) is an instrument to measure Sound Pressure Level in decibels (dB). SL-824 is featured with wide measuring range (30 ~ 130 dB), Bar-Graph Indication, A/C frequency weighting, Fast / Slow response and Maximum Hold function. The meter also provides a windscreen to filter-out unwanted signals.
SL-824 is a portable, easy to use and handy instrument for sound quality control in office, home, school and construction site. The meter has wide range of applications such as noise pollution studies, research and other industrial use.
* Conformed to the IEC 651 Type 2 and ANSI S1.4 Type 2 set standard
* Wide Measuring Range: 30 ~ 130 dB
* With 2 equivalent weighted sound pressure levels A and C
* Fast and Slow dynamic characteristic modes
* AC and DC signed output for frequency analyzer level recorder, FFT analyzer and graphic recorder etc
* Equipped with windscreen to filter noise or unwanted signal
* Bar graph indication for Sound Level Range
* Large LCD screen with 4 digits reading
* With Tripod mounting on the back of the unit for field use
* Sound Level: 30 ~ 130 dB with Level selecting button switches
* Frequency Range: 31.5 Hz ~ 8.5 kHz
* Measuring Level: 30 ~ 130 dB(A) (A-weighted decibels), 35 ~ 130 dB(C) (C-weighted decibels)
* Bar graph: 50 dB scale at 1 dB step for monitoring current sound pressure level display period: 50 mS
* Over range indication: Under indication less than lower limit of the range
* AC output: 0.707 Vrms at Full Scale output impedance approx. 600
* DC output: 10 mV / dB output impedance approx. 100
* Time weighting: Fast / Slow
* Microphone: inch electret condenser microphone
* Power Supply: 9 V (6F22) Battery (included)
* Power life: about 30 hours (alkaline battery)
* Operating Humidity: 10 ~ 70 % R.H.
* Storage Humidity: 10 ~ 80 % R.H.
* Dimensions: approx. 235 (L) x 70 (W) x 30 (H) mm (9.25' x 2.76' x 1.18' inch)
* 1 x Sponge Ball or Windscreen
* Normal postage time is 7 to 15 days to Germany, France, Spain, Italy, Netherlands and Belgium
* Normal postage time is 7 to 15 days to rest of the world
