> AW07A swr hf/vhf/uhf antenna analyzer /meter
AW07A swr hf/vhf/uhf antenna analyzer /meter
1: items sent from UK track is: my location->Shenzhen->HongKong->UK store-your location( i hate saturday and sunday:)))))
2: items sent from HongKong or China mainland: my location->shenzhen->HongKong->your location
Everybody must be left a phone number(Home or office prefered ) Cuz,I need it for service and delivery.
My Callsign: BA5WA /ex BD5RT Everybody can get the detail for QRZ.com
Service hot-line :+86-13075811660 UTC:0100-1300 Monday-Sunday English Only
delayed by the volcanic eruption in Iceland on May 8.
as many airports were stopped and airlines were canceled after ashes from a volcanic eruption in Iceland spread into
parts of south and west Europe.
We are not sure when the situation will be better. Thus, before that, we appreciate your patience and understanding for

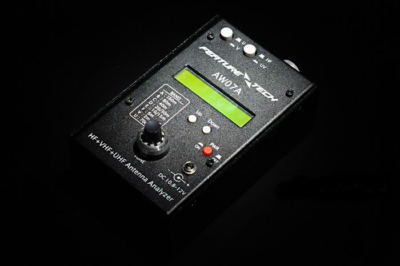

The AW07A SWR analyzer is a compact battery powered RF impedance analyzer. This unit combines six basic circuits:a variable oscillator,
frequency counter,Independent Oscillator, 50 ohm RF bridge, a 8-bit A-D converter, and microcontroller. This unit performs a wide variety of useful
antenna and RF impedance measurements,including Capacitance and Inductance. The operating frequency range of this unit extends from 1.8 to 490
MHz SWR measurements. Special designed for analyzing 50ohm antenna. the AW07A also measuresRF impedances between a few ohms and several
hundred ohms. An easily accessed user controlled Z setting in the ADVANCED function menus allows changing SWR to any normalized impedance
value between 10 and 500 ohms. The AW07A also functions as a non-precision signal source and frequency counter. The operating frequency range
of this unit extends from 1.5 to 71 MHz in six overlapping bands, and includes SWR measurements on 85-185MHz ,300-490 MHz.
Add a coupling inductor,This kits will be a Dip Meter!
This item have functions as follow:
1. Resonant frequency 2. Capacitance (pF) 3. Reactance or X (ohms) 4. Signal Frequency (MHz)
5. Impedance or Z magnitude (ohms) 6. Resistance or R (ohms) 7. SWR ( Zo programmable)
7. Field intensity indicator (signal strength must be lower than 1.5V)
Band Coverage : 160m,80m,40m, 20/30m,10/15m, 6m,2m, 70cm
Additional Feature: Frequency Counter
Battery : 8 * AA Alkaline Battery
Power Consumption : < 150mA (HF Bands, B/L Off) < 165mA (VU Bands, B/L Off)
The FREQUENCY switch selects the following internal oscillator frequency ranges.Not mechanical switch on HF BAND!!! .(A small overlap outside
AW07A Operation Manual Available Now!!! update! NEW PDF Format
http://www.box.net/shared/01ru7cycns
If sever was busy please check out as follow:
http://cid-1c3ac262c3f8ddac.skydrive.live.com/self.aspx/.Documents/AW07A%5E_Instruction%5E_Manual.pdf (copy & paste the URL to IE,FireFox)
BUT UK royal mail will lost items sometimes and slowly :(
Other Countries must be from mainland China or Hongkong!!
Customized Items(different frequeny coverange) please e-mail me!
Everybody must be left a phone number(Home or office prefered )Cuz,I need it for service and delivery.Any Questions Skype: ba5waba5wa (UTC:0000-1300)
