> 20 pcs. mini switch spdt spring center off low voltage

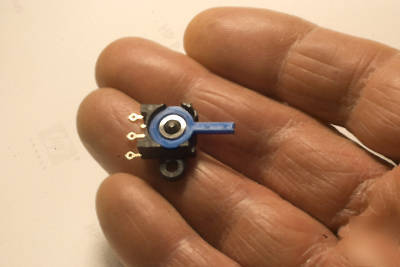

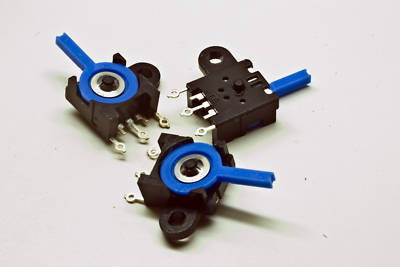

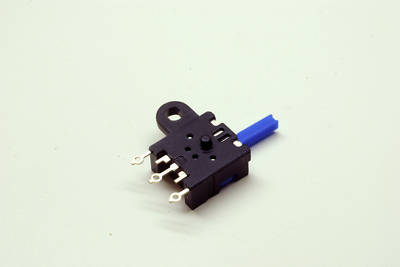

20 pcs. mini switch spdt spring center off low voltage
(that's less than .35 cents each) Made by ALPS Electric, so you know it's quality !
SPRING LOADED CENTER OFF POSITION
Main Switch Body Measures approx. 1cm x 1cm x 5mm
Three Solder lugs (center common), Solder pins extend 5mm from body of switch.
Screw mount hole extends 5mm from body of switch.
Blue "bat" extends 9mm from body of switch.
Plastic alignment pin extends 1mm from back of switch, may be cut or filed down.
Typical uses: Robotics, Limit Sensor, Toys, Hobby, Art ...
