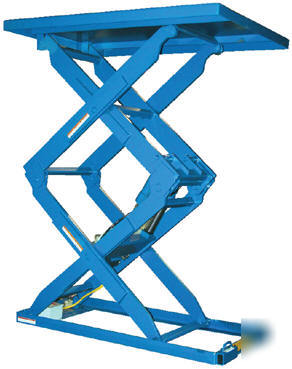

Double scissor lift table, 1/2 ton lb., 84" h
DOUBLE SCISSOR LIFT TABLE, 1/2 Ton LB., 84" H
Model Number For This Listing: EHLTD-1-84
DOUBLE SCISSOR LIFT TABLE, 1/2 Ton LB., 84' H
Capacity: 1,000 lbs. , Raised Height: 84" , Lowered Height: 12" , Travel Time 16 sec , Vertical Travel 72" - Specify Platform Size when ordering Width 34"-48" , Length 64"-88". Achieve the extra reach you're looking for with our Double Scissor Lift Tables. These full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, brass safety velocity fuse to maintain platform height regardless of hydraulic pressure, 24V AC push-button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. 2 HP, 460V, 3-phase, 60Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.
