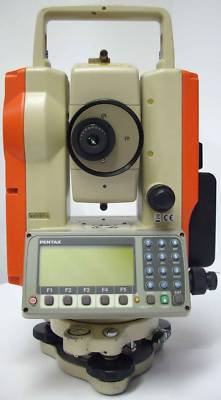

Pentax R326EX total station R300 series
On offer here is a reconditioned Pentax R300X series total station. We are an authorised Pentax Repair Centre and have given this machine a full check up.
This instrument was traded in from a quality control engineer who kept it in superb condition. There are one or two paint scratches (visible in pictures) however the unit looks and operates as new.
You are presented with an excellent opportunity to acquire an easy to use and highly accurate total station.
The R-300X-series from Pentax offers improved measurement efficiency for any job. This total station has the largest LCD screen in its class and uses a highly accurate laser plummet. With a measurement time of 0.4 sec in tracking mode, 1.2 sec in quick mode plus large built in memory the R300 series is an excellent total station.
This model is the 6 second version and comes with the popular, user friendly PowerTopo Lite survey and engineering software on board.
Included in the sale are two batteries and charger plus instrument case.
Optical aperture 45mm (EDM aperture:45mm)
Recticle illumination Intensity settings: 10 steps
Laser class Visible Laser:Class II (2)
Measurement range (Good condition)
Reflector sheet 1.5m - 600m (800m)
Mini prism 1.5m - 1100m (1600m)
Reflector sheet (3 + 2ppmx D)mm
Repeat measurement Normal: Prism, Reflective sheet 2.0sec. (1mm) Normal: Prism, Reflective sheet 1.2sec. (1mm) Track: Prism, Reflective sheet 0.4sec. (1cm) *Quick mode
Initial measurement Normal: Prism, Reflective sheet 2.5sec.(1mm)
Method Horizontal: 2 sides / Vertical: 2 sides
Display Type Graphic LCD / 20 alphanumeric 8 lines / 240 x 96 pixels
Keys 22 each (12 numeric / 5 function / 5 special)
Display back light Intensity settings: 10 steps
Accuracy 0.8mm (instrument height 1.5m)
Working temperature -20 C ~ +50 C / -4 F ~ +122 F
Dust and Water protection IP56
Instrument dimensions 177 (W) x 343 (H) x 177 (L) mm
Instrument weight (with battery) 5.7 kg / 12.6 lbs 5.5 kg / 12.1 lbs 5.7 kg / 12.6 lbs
Case dimensions 268 (W) x 442 (H) x 465 (H)mm
Coordinates data 12.000 points
