No.5-3 gisholt masterline ram type turret lathe scr

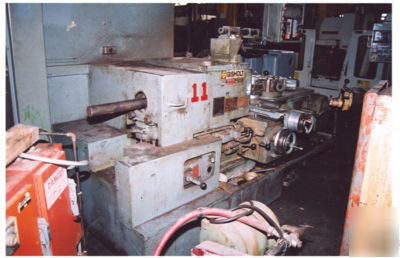

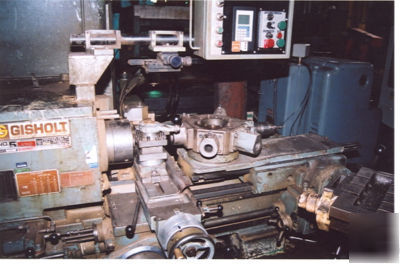

No.5-3 GISHOLT Masterline Ram type turret lathe with SCR drive, S/N 3784x4, new 1971
Swing over carriage wings 18
Swing over cross slide 12 1/8
Longitudinal travel of cross slide 25
(8)Power longitudinal & cross feeds .003-.031 IPR
Hexagon turret turning length 15.62
Max. distance spindle to turret face 37
8 power longitudinal feeds of turret .003-.031 IPR
Curvic couplings on both hexagon & square turrets
Leader type threading with (5) leaders
Mimik hydraulic tracer attachment mounted on rear slide
Pneumatic collet chuck with approx. (50) sets of collets
8 dia. 3-jaw universal chuck
Power assisted turret indexing
(5)short flange type tool holders
(1)long flange type tool holders
Variable speed drive with up-dated Square D-Altvar
S.S. controls, pendant control mount
